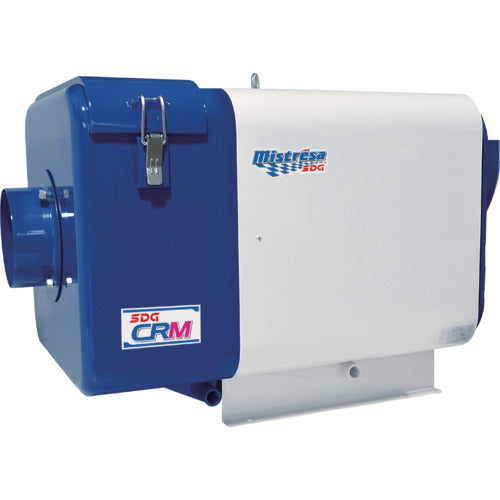

Showa Oil Mist Collector Multi Series Mistresa CRM Type CRM-H04-S23 1 unit

Catalog number: CRM-H04-S23 Features: ●This is a multi-series that allows you to choose the mist collection method according to your specifications. ●Even after purchase, you can easily change the collection method to suit your usage environment. Applications: ●NC lathes, general-purpose lathes, milling machines, machining centers, electric discharge machines, die-casting machines, and other machines that generate mist. ●Applicable mist: water-soluble and oil-based. Specifications: ● Power supply (V): Three-phase 200 ● Output (kW) (50/60Hz): 0.4 ● Air volume (［［M3］］/min) 50Hz: 4.6 ● Air volume (［［M3］］/min) 60Hz: 5.6 ● Frequency (Hz): 50/60 ● Body dimensions (mm) Width: 387 ● Body dimensions (mm) Depth: 684 ● Body dimensions (mm) Height: 435 ● Installation dimensions (mm): 200 x 180 ● Intake port diameter (mm): 98 ● Removal method: Filter/end filter ● Collection efficiency (%): 99.8% ● Standard power consumption fee: 5.40 yen/h ● Collection efficiency: 99.8% ● Compatible with 50/60Hz ● Can be customized to accommodate different voltages from a single unit Material/Finish: ● Iron (SPHC)
