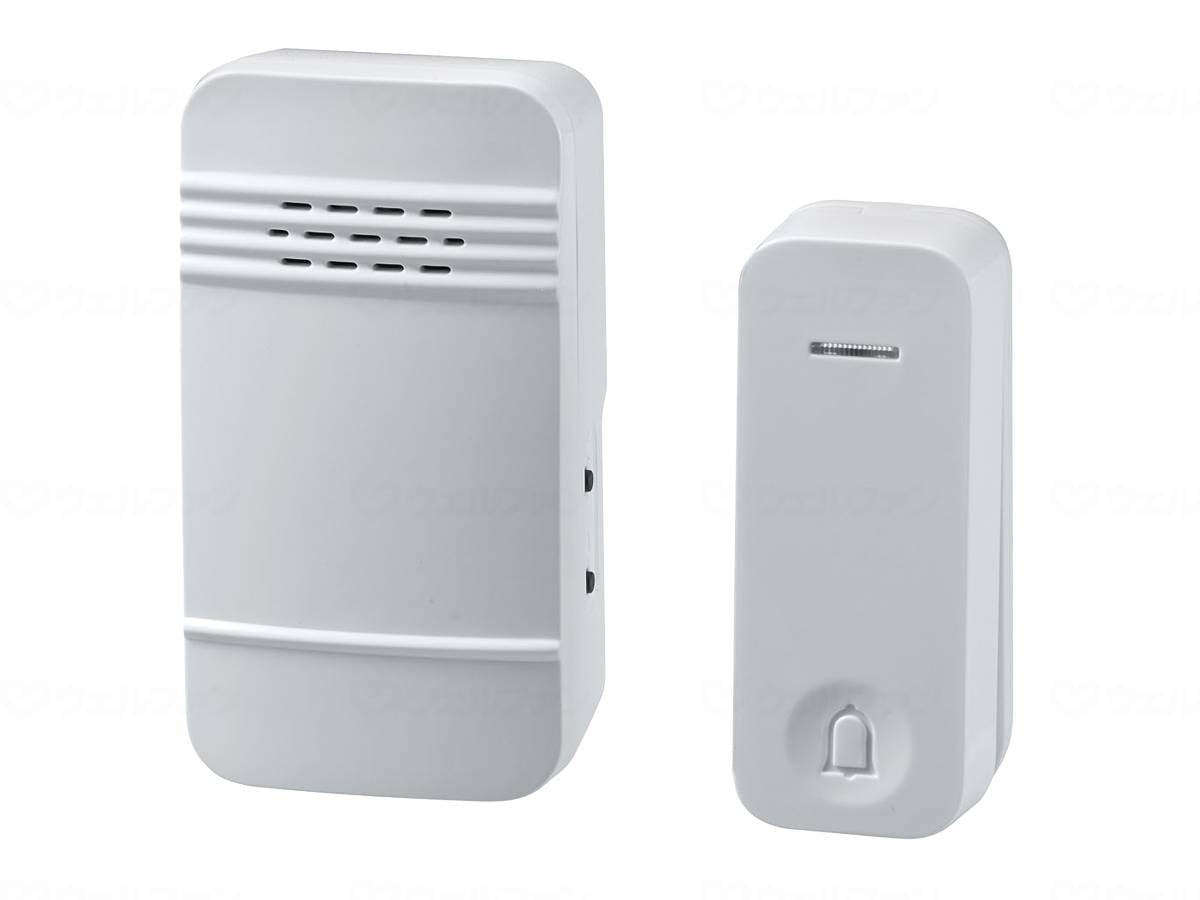

Asahi Denki Battery-free wireless chime set
Asahi Denki Battery-free wireless chime set
Regular price
¥3,334
Regular price
Sale price
¥3,334
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Manufacturer part number: "WC-S6040AC" Size and weight
Weight of receiver: Approx. 88g
Push button transmitter: Approx. 66g (including mounting holder)
comment
○It is a wireless type that does not require wiring, so it is easy to install!

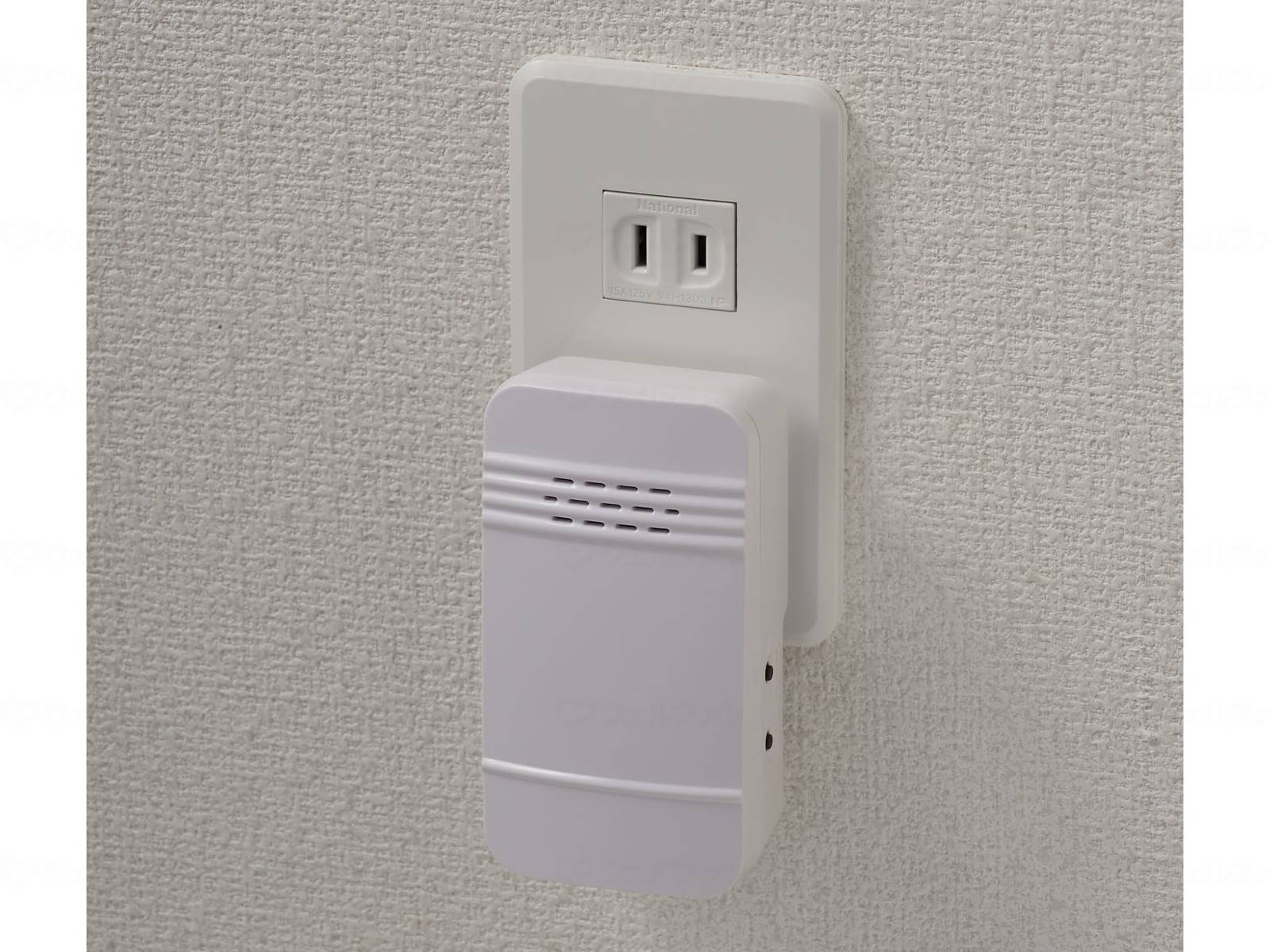

○The receiver simply needs to be plugged into an outlet, and the transmitter generates power when pressed, so no batteries are required.
The radio wave has a line-of-sight range of approximately 90m. It is ideal for use as a paging or alarm device in homes, stores, and offices.
○There are approximately 1 million possible ID codes (identification codes), so there is no need to worry about interference.
○8 types of notification sounds to choose from.
○Waterproof push button that can be used outdoors.
*Please avoid installing the product in locations where it will be directly exposed to large amounts of water (such as heavy rain or typhoon rain).
standard
1 set
Standard details
[Receiver]
Power supply: AC100V 50/60Hz
External dimensions (approx.): Width 57 x Height 106 x Depth 39 mm
○Volume: Approx. 85dB/50cm *At maximum volume
○Frequency: 314.8MHz (specific low-power device)
○ID code: Approximately 1 million
Radio wave reach: Line of sight approx. 90m
Operating temperature range: 0℃ to 40℃
Accessories: 2 mounting screws (φ3×14mm), 2 sleeves (φ6×24mm), 1 double-sided tape
[Transmitter]
Power source: Generates power by pressing (no batteries required)
External dimensions (approx.): Width 35 x Height 87 x Depth 33 mm (including mounting holder)
Waterproof: IPX4 splash-proof and rain-proof
