Tohoku Sharyo Seizosho Cast Caster Standard Type Urethane Wheel with Fixed Bracket 75 75KULB 1 Piece

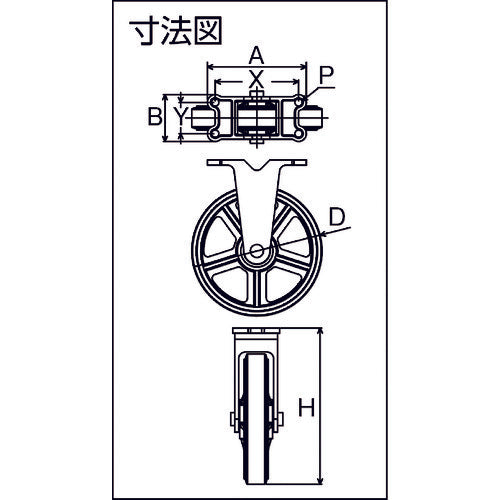

Catalog number: 75KULB Features: ●Medium load type cast (ductile) caster. ●Because it is made of cast iron, it absorbs sound and vibration and has a higher allowable load compared to pressed wheels. ●Cast (ductile) caster suitable for transporting heavy objects. ●Has less rolling resistance compared to rubber wheels and has excellent oil resistance. Uses: ● Less starting resistance and excellent oil resistance than other wheels Specifications: ● Wheel diameter D (mm): 75 ● Type: Fixed ● Permissible load (daN): 156.8 ● Permissible load (kgf): 160 ● Wheel width (mm): 30 ● Mounting height H (mm): 112.5 ● Mounting seat A (mm): 95 ● Mounting seat B (mm): 52 ● Mounting pitch X (mm): 75 (2 holes) ● Mounting hole diameter P (mm): 11 ● Shaft diameter d (mm): 10 ● Bearing: CB1030 ● Fixed Material/Finish: ● Metal fittings: FCD ● Surface treatment: Painted finish ● Wheels: Cast iron wheel, urethane Note: ● There are two mounting holes.
