Tohoku Sharyo Seizosho Cast Caster Standard Type Rubber Wheel with Fixed Bracket 75mm 75KB 1pc

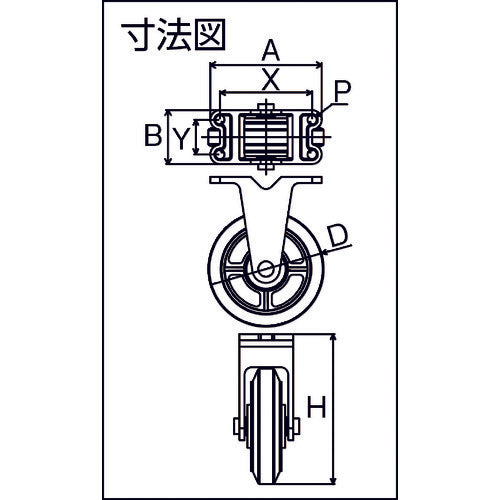

Catalogue number: 75KB Features: ●Cast iron (ductile) caster. ●Because it is made of cast iron, it absorbs sound and vibration and has a higher allowable load than pressed wheels. ●Cast iron (ductile) caster suitable for transporting heavy objects. Applications: ●Excellent wear resistance and water resistance. Specifications: ●Wheel diameter D (mm): 75 ●Type: Fixed type ●Allowable load (daN): 68.6 ●Allowable load (kgf): 70 ●Wheel width (mm): 32 ●Mounting height H (mm): 112.5 ●Mounting seat A (mm): 95 ●Mounting seat B (mm): 52 ●Mounting pitch X (mm): 75 ●Mounting pitch Y (mm): 75 ●Mounting hole diameter P (mm): 11 ●Shaft diameter d (mm): 10 ●Bearing: CB1030 ●Fixed type Material/Finish: ●Metal fittings: Ductile cast iron (FCD) ●Surface treatment: Painted finish ●Wheels: Cast iron wheels, rubber
