Tohoku Sharyo Seizosho Cast Caster Standard Type Iron Wheel with Fixed Bracket 75 75KFB 1 Piece

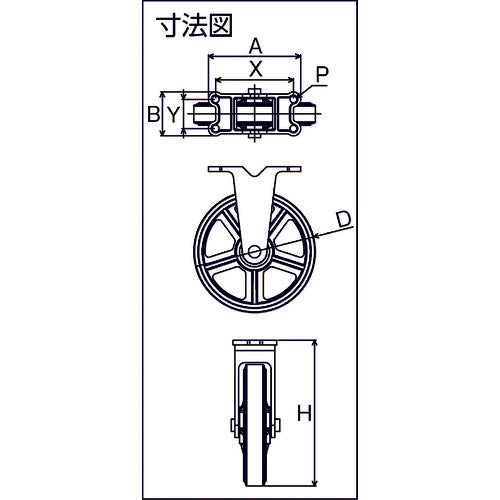

Catalog number: 75KFB Features: ●Cast iron (ductile) caster. ●Because it is made of cast iron, it absorbs sound and vibration and has a higher allowable load compared to pressed wheels. ●Cast iron (ductile) caster suitable for transporting heavy objects. ●Excellent oil and heat resistance. Uses: ●Can be used in high temperature locations Specifications: ●Wheel diameter D (mm): 75 ●Type: Fixed ●Permissible load (daN): 137.2 ●Permissible load (kgf): 140 ●Wheel width (mm): 32 ●Mounting height H (mm): 112.5 ●Mounting seat A (mm): 95 ●Mounting seat B (mm): 52 ●Mounting pitch X (mm): 75 (2 holes) ●Mounting hole diameter P (mm): 11 ●Shaft diameter d (mm): 10 ●Bearing: CB1030 ●Fixed Material/Finish: ●Metal fittings: Ductile iron (FCD) ●Surface treatment: Painted finish ●Wheels: Cast iron wheel, ductile iron (FCD) Note: ●There are two mounting holes.
