Tohoku Sharyo Seizosho Cast Caster Standard Type Urethane Wheel with Swivel Fitting 200 200BRULB 1 Piece

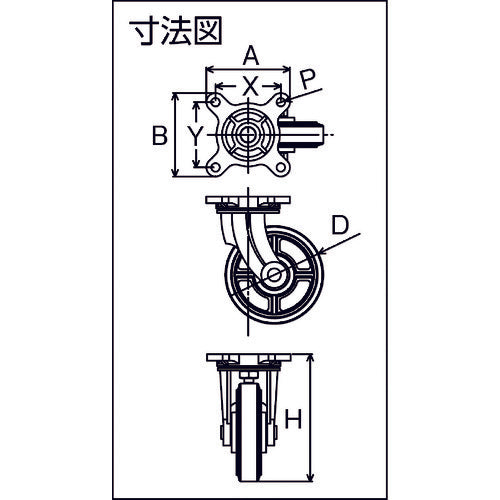

Catalog number: 200BRULB Features: ●Medium load type cast (ductile) caster. ●Because it is made of cast iron, it absorbs sound and vibration and has a higher allowable load compared to pressed wheels. ●Cast (ductile) caster suitable for transporting heavy objects. ●Has less rolling resistance compared to rubber wheels and has excellent oil resistance. Uses: ● Less starting resistance than other wheels, and excellent oil resistance. Specifications: ● Wheel diameter D (mm): 200 ● Type: Swivel ● Allowable load (daN): 490 ● Allowable load (kgf): 500 ● Wheel width (mm): 42 ● Mounting height H (mm): 250 ● Mounting seat A (mm): 156 ● Mounting seat B (mm): 156 ● Mounting pitch X (mm): 120 ● Mounting pitch Y (mm): 120 ● Mounting hole diameter P (mm): 15 ● Shaft diameter d (mm): 20 ● Bearing: #6204 ● Swivel Material/Finish: ● Metal fittings: FCD ● Surface treatment: Painted finish ● Wheels: Cast wheel, urethane
