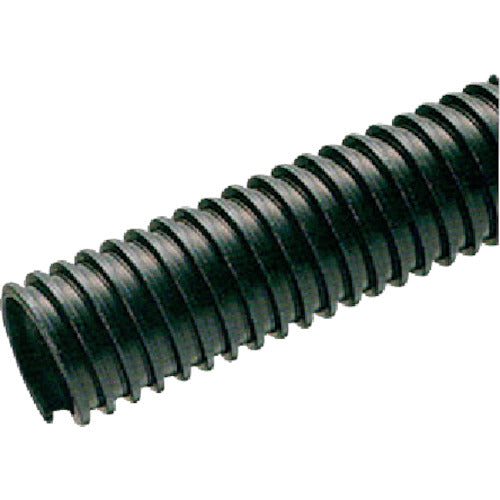

Tohtaku Industries TAC Heran Duct Diameter 50 x 10 m 21108-050-10 1 piece

Catalog number: 21108-050-10 Features: ● More than twice the abrasion resistance of our PVC ducts. ● Excellent cold and heat resistance. ● A duct hose with excellent anti-static properties. ● A duct hose that is less susceptible to ozone cracks (cracks) like conventional rubber hoses. Applications: ● For transporting powders and granular materials, iron powder, paper waste, and wood powder. ● For heat-resistant heated air machines. ● For other duct hoses that require abrasion resistance, heat resistance, and electrical conductivity. ● For drainage that flows along the surface. Specifications: ● Length (m): 10 ● Inner diameter (mm): 50.6 ● Outer diameter (mm): 61.2 ● Allowable bending radius (mm): 55 ● Nominal diameter (mm): 50 ● Allowable pressure (room temperature) (MPa): 0.03 ● Operating temperature range (℃): -30 to 80 ● Allowable bending radius (mm or more): 55 ● Operating temperature range: -30 to 80℃ Material/Finish: ● EPDM resin ● Polypropylene
