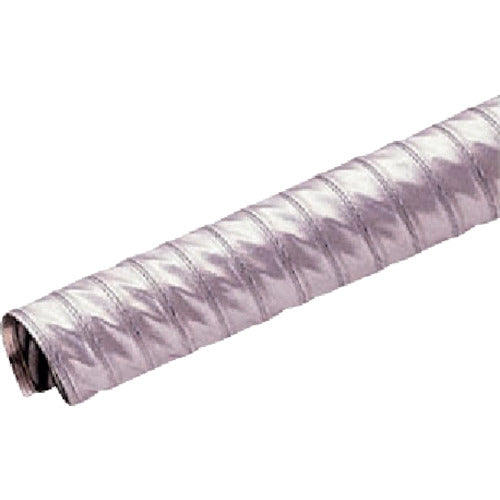

Tohtaku Industries TAC heat-resistant duct MD-25 diameter 90 x 5 m 21115-090-05 1 piece

Catalog number: 21115-090-05 Features: ●Specially coated glass cloth and stainless steel plate (SUS304) reinforcing core are used, and it can be used at temperatures below 250°C. ●It is freely stretchable, making it easy to store, keep and transport. ●The specially coated glass cloth used has excellent flame retardancy. ●(Class 1 disaster prevention certified product) Applications: ●For suction ducts for hot air generation and circulation equipment, electric and gas welding sparks, grinder sparks, etc. Specifications: ●Length (m): 5 ●Inner diameter (mm): 91.0 ●Outer diameter (mm): 94.5 ●Allowable bending radius (mm): 190 ●Allowable pressure (room temperature) (MPa): 0.007 ●Allowable pressure (room temperature) (kgf/cm2): 0.07 ●Usable temperature range: -20 to 250°C Materials/Finish: ●Specially coated glass cloth, stainless steel plate
