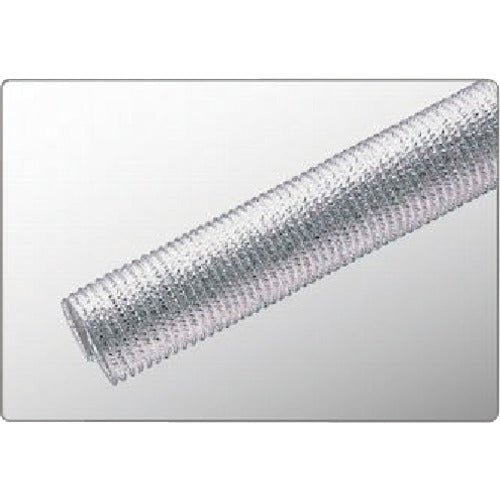

Tohtaku Industries TAC Duct Aluminum Diameter 125 x 5m 21102-125-05 1 piece
Tohtaku Industries TAC Duct Aluminum Diameter 125 x 5m 21102-125-05 1 piece
Regular price
¥15,786
Regular price
Sale price
¥15,786
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: 21102-125-05 Features: *Stretchable and flexible, making piping easy in tight spaces. *Shrinks to 1/5 its length for compact storage, so it doesn't take up much inventory space. *Resistant to repeated bending, and has excellent heat resistance. *(Below 80°C) Applications: *Ducts for ventilation fans in homes, apartments, stores, etc. *For air conditioning in buildings and other structures. **This material is not non-flammable, so it cannot be used for range hood exhaust. Specifications: ●Length (m): 5 ●Inner diameter (mm): 125 ●Outer diameter (mm): 130.3 ●Permissible bending radius (mm): 90 ●Nominal diameter (mm): 125 ●Permissible pressure (room temperature) (MPa): 0.01 ●Permissible pressure (room temperature) (kgf/cm2): 0.1 ●Nominal diameter (inches): 5 ●Operating temperature range: -20 to 80°C Material/Finish: ●Aluminum foil, hard steel wire Caution: ●This is not a non-flammable material and cannot be used for range hood exhaust.
