Tokai Plate-type double-wheel caster, 130 diameter, swivel, F130, 1 piece

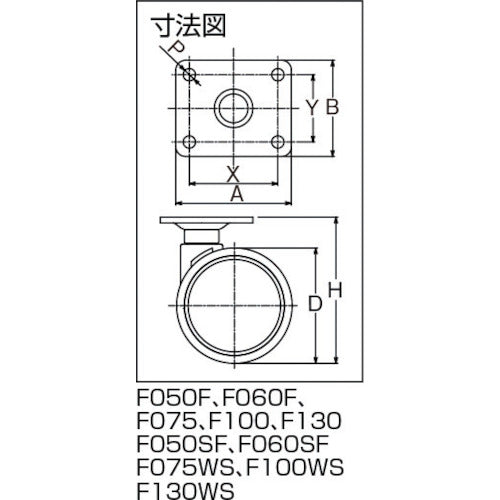

Catalogue number: F130 Features: ●Dual wheels provide high turning ability. ●Complies with RoHS. Applications: ●Office equipment, information equipment, display fixtures, medical equipment, etc. Specifications: ●Wheel diameter D (mm): 130 ●Type: Swivel ●Allowable load (daN): 98 ●Allowable load (kgf): 100 ●Wheel width (mm): 52 ●Mounting height H (mm): 153.5 ●Mounting seat A (mm): 66 ●Mounting seat B (mm): 66 ●Mounting pitch X (mm): 50 ●Mounting pitch Y (mm): 50 ●Mounting hole diameter P (mm): 6.2 ●Swivel ●Plate type Material/Finish: ●Metal fittings: Steel ●Wheels: Elastomer
