Tokai Plate-type double-wheel caster, diameter 50, with swivel S, F050S, 1 piece

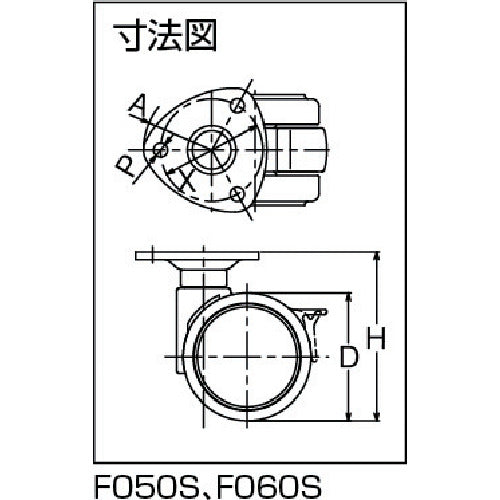

Catalogue number: F050S Features: ●Dual wheels provide high turning ability. ●Complies with RoHS. Applications: ●Office equipment, information equipment, display fixtures, medical equipment, etc. Specifications: ●Wheel diameter D (mm): 50 ●Type: Free-wheeling (with stopper) ●Allowable load (daN): 58.8 ●Allowable load (kgf): 60 ●Wheel width (mm): 43.5 ●Mounting height H (mm): 66 ●Mounting seat A (mm): 54 ●Mounting seat B (mm): 54 ●Mounting pitch X (mm): 40 ●Mounting pitch Y (mm): 40 ●Mounting hole diameter P (mm): 5.5 ●Free-wheeling (with stopper) ●Plate type Material/Finish: ●Metal fittings: Steel ●Wheels: Elastomer
