Tokai Plate-type double-wheel caster, diameter 60, swivel F060, 1 piece

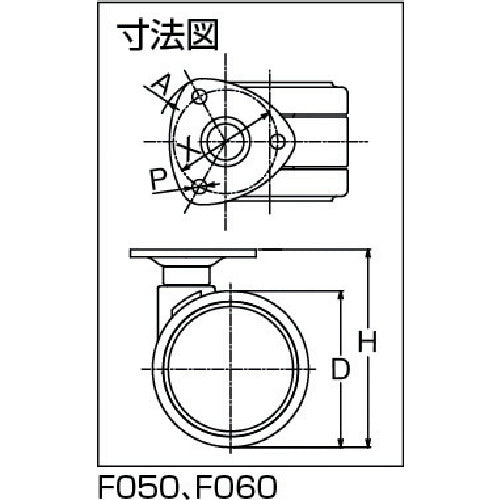

Catalogue number: F060 Features: ●Dual wheels provide high turning ability. ●Complies with RoHS. Applications: ●Office equipment, information equipment, display fixtures, medical equipment, etc. Specifications: ●Wheel diameter D (mm): 60 ●Type: Swivel ●Allowable load (daN): 78.4 ●Allowable load (kgf): 80 ●Wheel width (mm): 46 ●Mounting height H (mm): 76 ●Mounting seat A (mm): 54 ●Mounting seat B (mm): 54 ●Mounting pitch X (mm): 40 ●Mounting pitch Y (mm): 40 ●Mounting pitch b (mm): 40 ●Mounting hole diameter P (mm): 5.5 ●Swivel ●Plate type Material/Finish: ●Metal fittings: Steel ●Wheels: Elastomer
