Tokai Plate-type double-wheel caster, 75 diameter, swivel F075, 1 piece

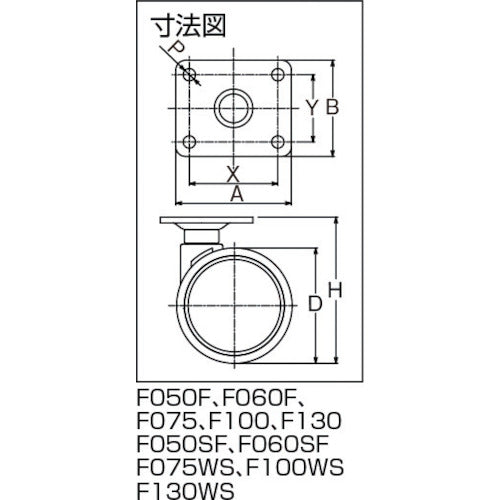

Catalogue number: F075 Features: ●Dual wheels provide high turning ability. ●Complies with RoHS. Applications: ●Office equipment, information equipment, display fixtures, medical equipment, etc. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel ●Allowable load (daN): 78.4 ●Allowable load (kgf): 80 ●Wheel width (mm): 47 ●Mounting height H (mm): 92 ●Mounting seat A (mm): 60 ●Mounting seat B (mm): 50 ●Mounting pitch X (mm): 46 ●Mounting pitch Y (mm): 35 ●Mounting hole diameter P (mm): 6.4 ●Swivel ●Plate type Material/Finish: ●Metal fittings: Steel ●Wheels: Elastomer
