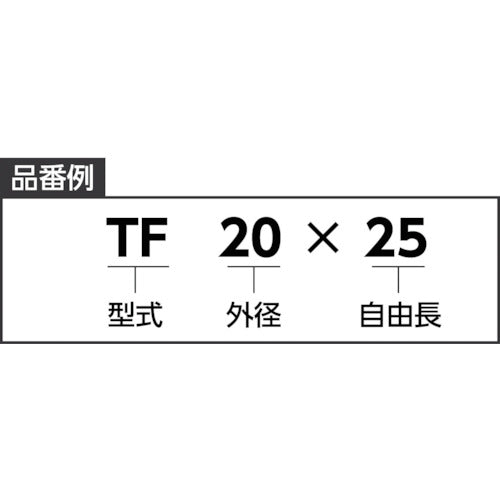

Catalog number: TL50X90 Features: ●A wide lineup has been achieved, realizing the standardization of springs as mold parts. ●Used widely by users as machine parts, as well as in the mold industry. Applications: ●Press molds ●Clutch and brake parts ●Precision machine parts ●Machine tool parts ●Seismic isolation parts Specifications: ●Outer diameter (mm): 50 ●Inner diameter (mm): 25.0 ●Free length (mm): 90 ●Spring constant (N/mm): 91.98 ●Maximum deflection (mm): 36.0 ●Maximum load (N): 3310 ●Rust prevention treatment: Electrochemical coating ●Usage temperature: -30 to 150°C Material/Finish: ●Silicon chrome steel for springs Caution: ●Do not use with deflection exceeding 40.0% of the free length.
