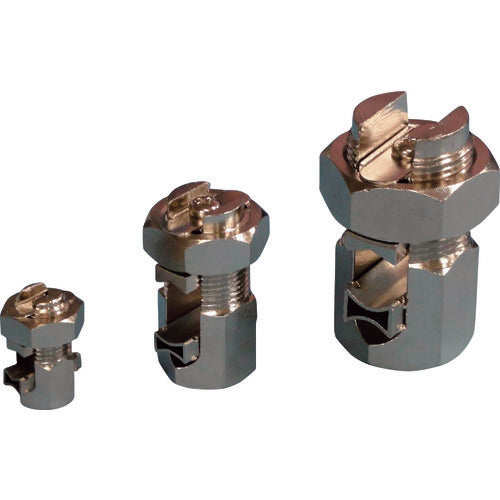

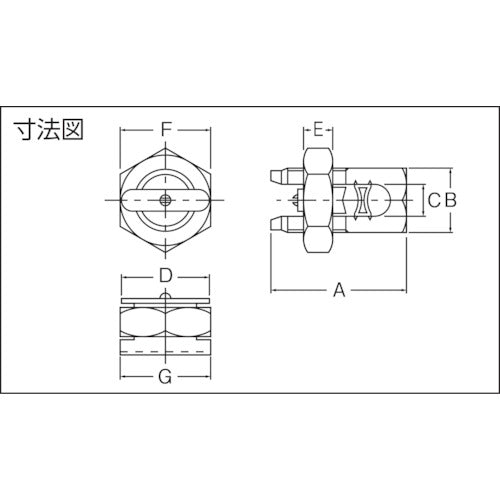

Catalogue number: BC-8 Features: ● Installation and removal can be done with a wrench, etc., shortening construction time. Applications: ● For copper wires. ● Branching of high and low voltage overhead electric lines, connecting terminal wires. ● Connecting 8sq and 8sq copper wires. Specifications: ● Suitable wire stranded wire (mm): 8.0 ● A (mm): 24 ● B (mm): 12 ● C (mm): 4.2 ● D (mm): 16 ● E (mm): 7.0 ● F (mm): 16 ● G (mm): 16 ● Suitable wire conductor diameter (mm): 3.6 ● Body: JIS H3250 ● Washer: JIS H3300 Material/Finish: ● Copper, copper alloy
