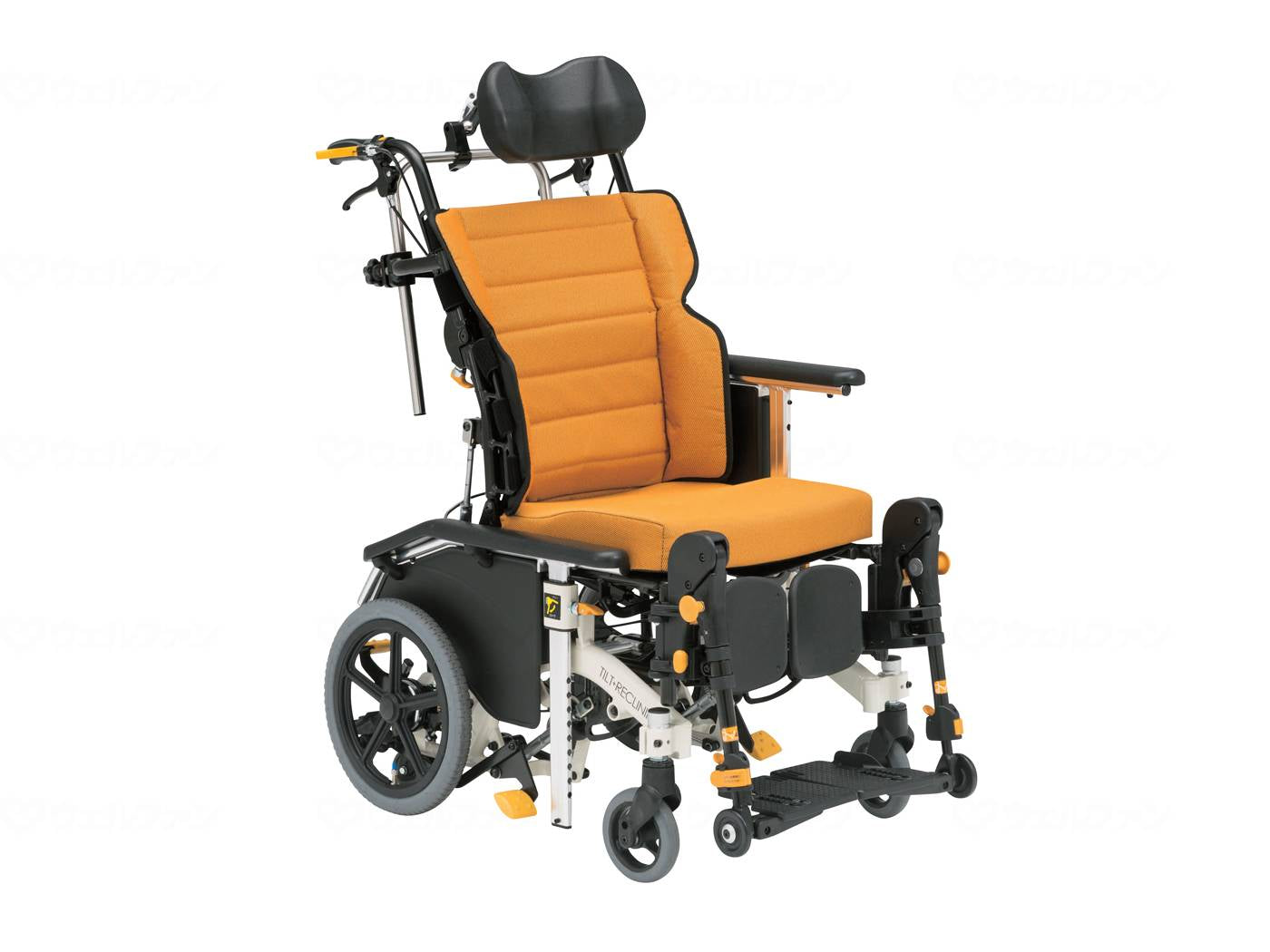

Matsunaga Manufacturing My Tilt Mini 3D Lift Up S&E Specification F-1 (Orange)

Manufacturer Part Number: "MH-SRL-SE" TAIS: "00066-000352" Size and Weight Weight: 29.0kg comment Ultra-slim and compact tilt and reclining wheelchair Easy to use even for small people! MyTilt Mini 3D adjustment function! With lift-up unit, swing-out and elevating unit ○Even petite people can sit firmly and deeply ○ Direct-underfoot support that is pulled forward as far as possible (adjustable forward/backward and angle) ○ "Snake head support" that can be freely adjusted from a low position to front/back and left/right ○Back frame forward folding function to support stable sitting position for people with round kyphosis Hybrid tire specifications Materials and raw materials - Standard details Size: Width 530mm x Length 880-1195mm x Height 1010mm ○ Folding size: - ○ Seat: Width 400 x Depth 350mm ○ Front seat height: 410mm Rear seat height: 410mm Arm support height: 0.140-300mm Back support height: 480mm ○Foot length: 260mm～ Wheels: 5 inch casters, 12 inch wheels Reclining angle: 90-110° Tilt angle: 0 to 25° ○ Target height: 140-165cm Scheduled for release in March 2018
