For bending aluminum and steel plates

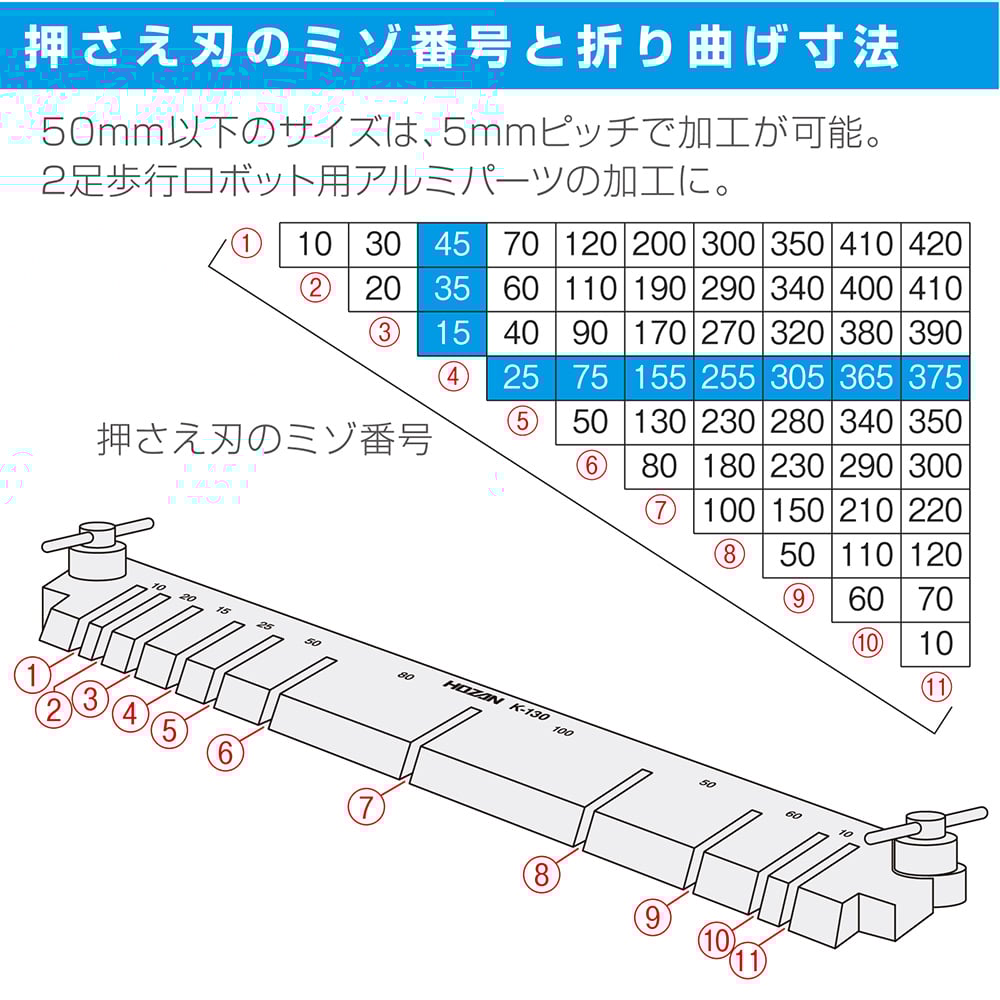

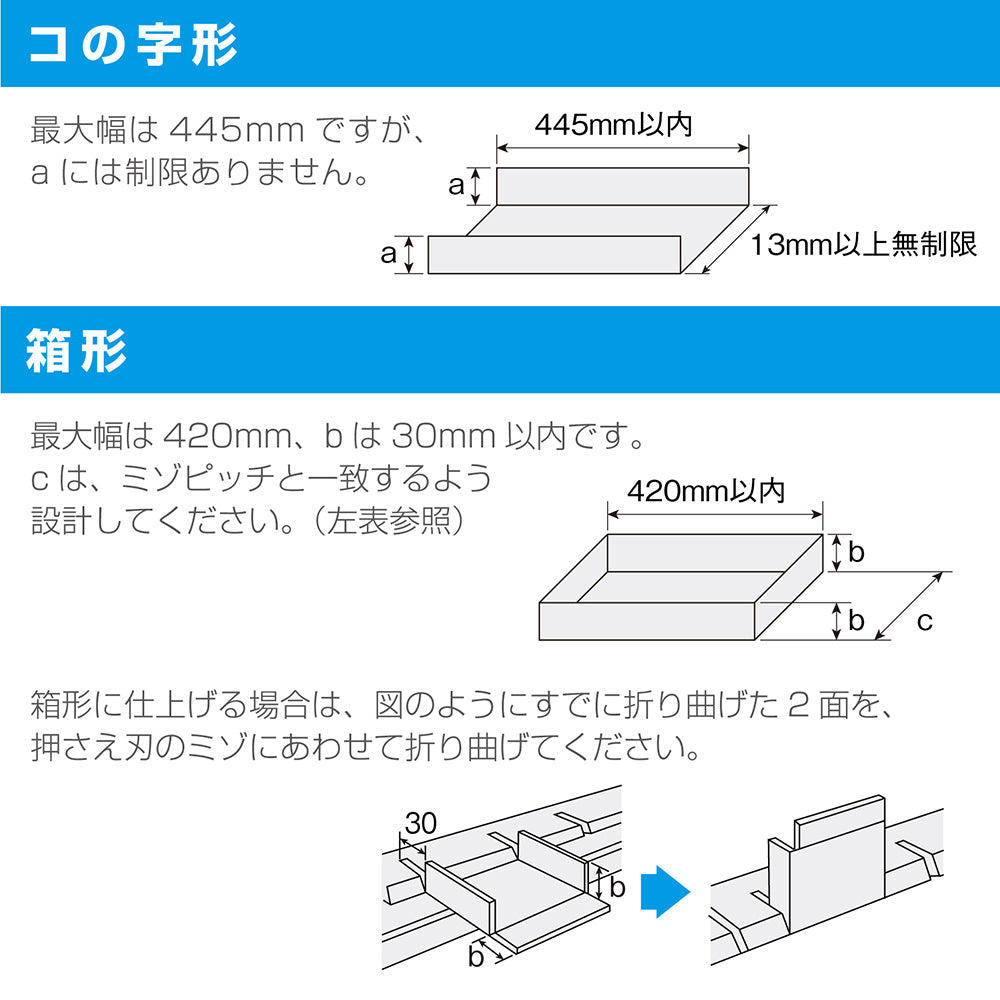

By combining the groove spacing, most four-sided bending can be performed in increments of 5mm or 10mm from 10 to 420mm. (However, in the case of box shapes, 140, 160, 240 to 260, 310, 330, 360, and 370mm cannot be processed.) With a clamp

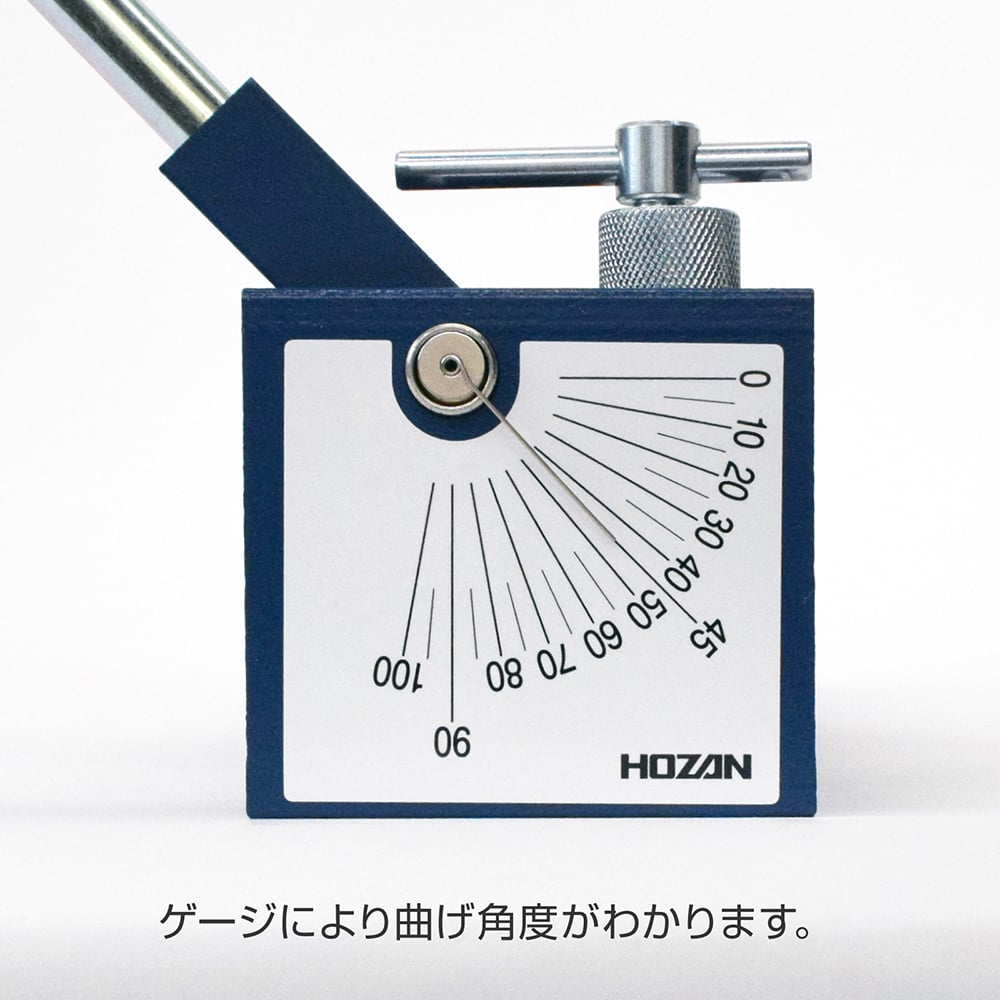

Bending angle gauge included
■Bending capacity: Steel plate 0.6 mm thick / Aluminum plate 1.5 mm thick or less
Weight: 7.3kg
Total length: 510mm
Quantity: 1
