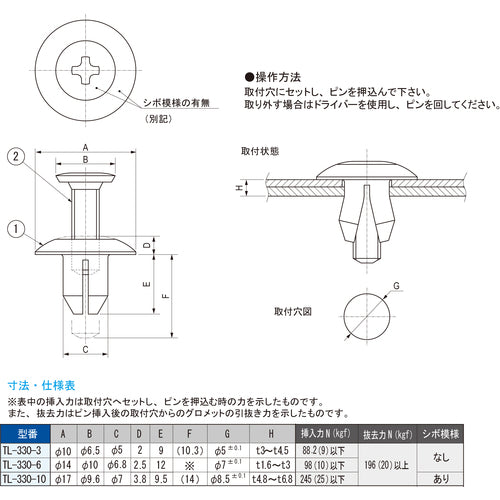

Catalog number: TL-330-3 Features: ● Installation is easy with plastic rivets to attach the panel. ● Simply insert into the mounting hole and push in the pin to secure, and remove by turning the pin with a screwdriver. Applications: ● For mounting measuring instruments, distribution boards, electronic devices, etc. Specifications: ● Color: Black ● Hole diameter (mm): Φ5±0.1 ● Usable thickness (mm): 3-4.5 ● Outer diameter (mm): 10 ● Inner diameter (mm): 6.5 ● Insertion force: 88.2 (9) N (kg) or less ● Removal force: 196 (20) N (kg) or more Material/Finish: ● Polyamide
