Tochigiya Draw Catch TL-241-1 1 piece

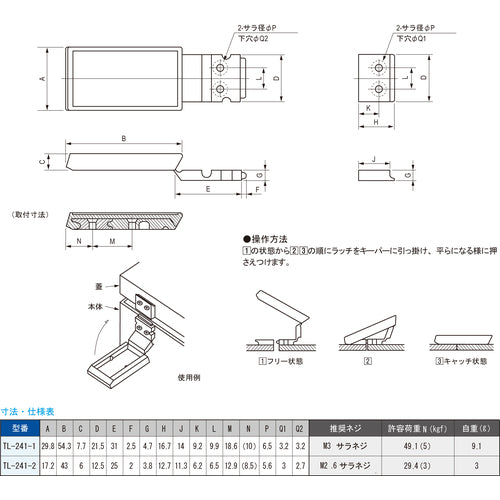

Catalog number: TL-241-1 Features: ●Since it does not use metal, it is suitable for equipment that requires waterproofing and salt damage prevention. Applications: ●For measuring instruments, medical equipment, etc. Specifications: ●Main body mounting hole dimensions (mm): Φ3.2 ●Receiving hole dimensions (mm): Φ3.2 ●Allowable load (N): 49.1 ●Allowable load (kgf): 5 ●Length (mm): 54.3 ●Width (mm): 29.8 ●Height (mm): 7.7 ●L (mm): 9.9 ●D (mm): 21.5 ●E (mm): 31 ●F (mm): 2.5 ●G (mm): 4.7 ●Recommended screw: M3 flat head screw Material/Finish: ●Polypropylene (PP)
