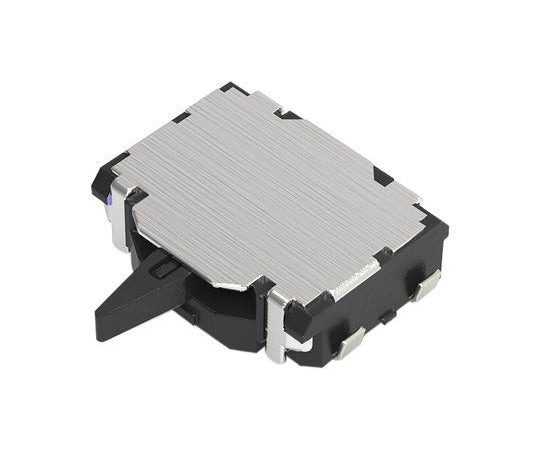

Detector switch level PCB 1 bag (5 pieces) SSCM120100 1 bag (5 pieces)

Alps Electric SSCM Series Small Detector Switch Alps Electric SSCM series low profile detector switch with bidirectional actuator. The SSCM series is available with or without a positioning lug. This detector switch can be easily mounted onto a PCB. Features and Benefits Low profile 1.5 mm body Bidirectional actuator Mean time between failures (MTBF): 50,000 Quantity: 1 bag (5 pieces) Contact configuration: SPDT Mounting type: PCB Actuator Type: Level Contact rated current: 1 mA Operating temperature Min: -10°C Operating temperature Max: +60°C RoHS Compliance Status: Compliant Code number: 123-9026
