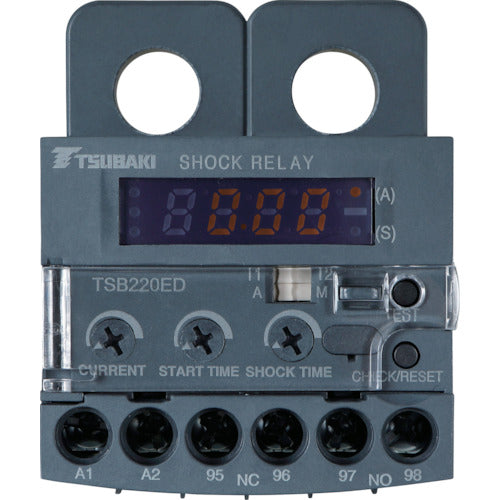

Tsubakimoto Chain Shock Relay ED Series TSB220ED 1 unit

Catalog number: TSB220ED Features: ● Current monitoring control device that quickly detects overcurrent when the motor is overloaded and prevents damage to the equipment. ● Motor current value during operation and various setting values ​​can be displayed digitally. ● Compact with integrated CT. Applications: ● Lifting equipment and conveyors. Specifications: ● Suitable motor capacity (kW) 200V class: 1.5/2.2 ● Suitable motor capacity (kW) 400V class: 2.2, 3.7/5.5 ● Current setting range (A): 3.00 to 10.0/4.00 to 14.0 ● Contact configuration: 1a1b ● Contact rating: 3A, 250VAC (cosθ=1) ● Length (mm): 70.8 ● Width (mm): 60.2 ● Height (mm): 70.5 ● Current setting range T2 (A) : 3.0-10●Current setting range T1 (A): 4.0-14●Detection current frequency: 20-200Hz●Maximum motor circuit voltage: AC600V 50/60Hz●Start time: 0.2-10.0 seconds (in 0.2 second increments), shock time: 0.2-5.0 seconds (in 0.2 second increments)●Power consumption: 2.0W or less●CT penetration number selection switch type (T1/T2)●UL/cUL certified●CCC certified
