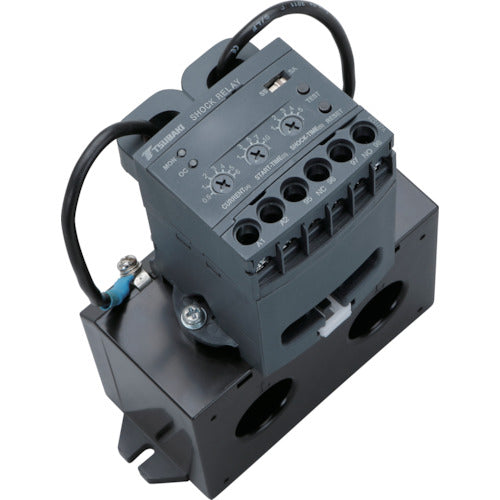

Tsubakimoto Chain Shock Relay SB Series TSBSB200 1 unit

Catalog number: TSBSB200 Features: ● Current monitoring control device that quickly detects overcurrent when the motor is overloaded and prevents damage to the equipment. ● Economical type. ● Wide current setting range. ● Compact with integrated CT. Applications: ● Lifting equipment and conveyors. Specifications: ● Suitable motor capacity (kW) 200V class: 22-37 ● Suitable motor capacity (kW) 400V class: 55-90 ● Current setting range (A): 20-200 ● Contact configuration: 1a1b ● Contact rating: 3A, 250VAC (cosθ=1) ● Length (mm): 126 ● Width (mm): 66.7 ● Height (mm): 148.2 ● Protection class: IP20 ● Operating power supply: 24-240VAC/DC ±10% 50/60Hz●Maximum motor circuit voltage: AC600V50/60Hz●Start time: 0.2 to 10.0 seconds (in 0.2 second increments), shock time: 0.2 to 5.0 seconds (in 0.2 second increments)●Current detection: 2-phase CT method●Insulation resistance: 10MΩ or more (DC500V mega)●Protection rating: IP20●Power consumption: 2.0W or less●UL/cUL certified●CCC certified
