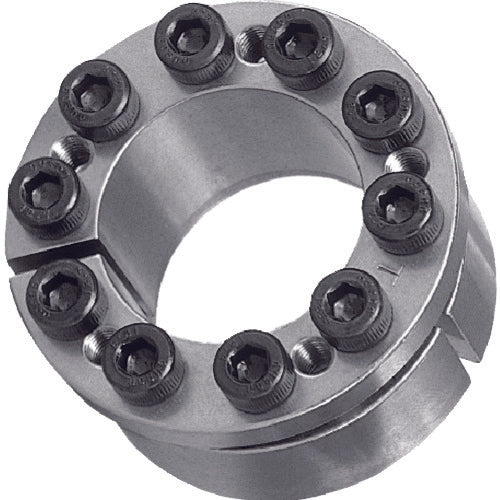

Tsubakimoto Chain Power Lock KE Series PL022X040KE 1 pc

Catalog number: PL022X040KE Features: ●Compatible with a wide range of shaft tolerances. Applications: ●Friction type fastener that fastens the shaft and boss without using a key, etc. Specifications: ●Inner diameter (mm): 22 ●Outer diameter (mm): 40 ●Length (mm): 25 ●Maximum allowable torque (N・m): 226 ●Two-face width dimension (mm): 15 ●Operating temperature range (℃): -30℃ to +200℃ ●Transmission torque (N・m): 226 ●Thrust load (kN): 19.4 ●Thrust load (N・m): 19.4
