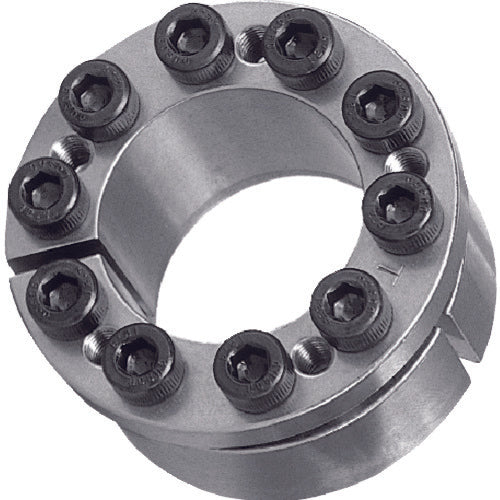

Tsubakimoto Chain Power Lock KE Series PL024X042KE 1 pc

Catalog number: PL024X042KE Features: ●Compatible with a wide range of shaft tolerances. Applications: ●Friction type fastener that fastens the shaft and boss without using a key, etc. Specifications: ●Inner diameter (mm): 24 ●Outer diameter (mm): 42 ●Length (mm): 25 ●Maximum allowable torque (N・m): 329 ●Two-sided width dimension (mm): 17 ●Operating temperature range (℃): -30℃ to +200℃ ●Transmission torque (N・m): 329 ●Thrust load (kN): 25.9 ●Thrust load (N・m): 25.9
