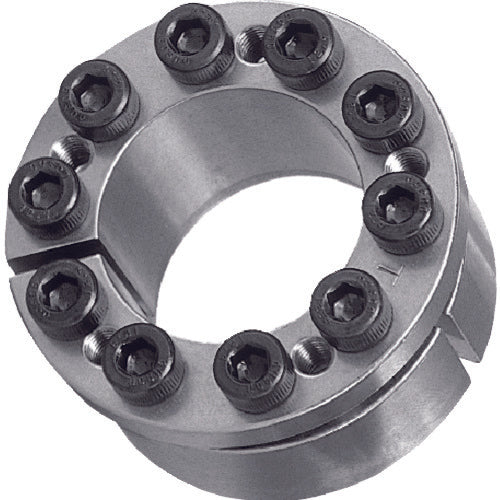

Tsubakimoto Chain Power Lock KE Series PL032X050KE 1 pc

Catalog number: PL032X050KE Features: ●Compatible with a wide range of shaft tolerances. Applications: ●Friction type fastener that fastens the shaft and boss without using a key, etc. Specifications: ●Inner diameter (mm): 32 ●Outer diameter (mm): 50 ●Length (mm): 28 ●Maximum allowable torque (N・m): 549 ●Two-face width dimension (mm): 19 ●Operating temperature range (℃): -30℃ to +200℃ ●Transmission torque (N・m): 549 ●Thrust load (kN): 32.4 ●Thrust load (N・m): 32.4
