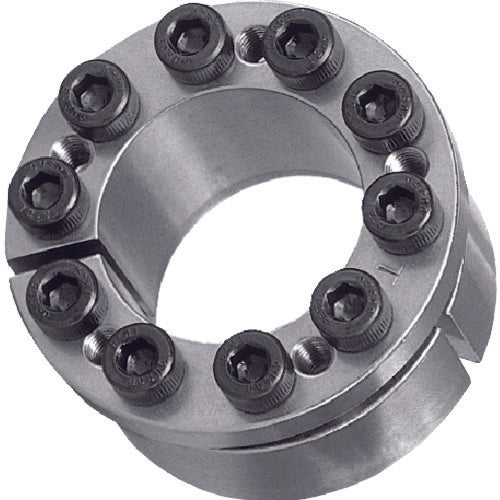

Tsubakimoto Chain Power Lock KE Series PL060X082KE 1 pc

Catalog number: PL060X082KE Features: ●Can accommodate a wide range of shaft tolerances. Applications: ●Friction type fastener that fastens the shaft and boss without using a key, etc. Specifications: ●Inner diameter (mm): 60 ●Outer diameter (mm): 82 ●Length (mm): 34.5 ●Maximum allowable torque (N・m): 2180 ●Two-face width dimension (mm): 19 ●Operating temperature range (℃): -30℃ to +200℃ ●Transmission torque (N・m): 2180 ●Thrust load (kN): 68.6 ●Thrust load (N・m): 68.6
