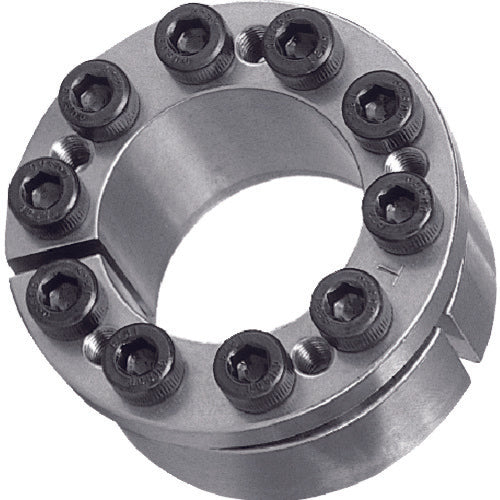

Tsubakimoto Chain Power Lock KE Series PL075X102KE 1 pc

Catalog number: PL075X102KE Features: ●Compatible with a wide range of shaft tolerances. Applications: ●Friction type fastener that fastens the shaft and boss without using a key, etc. Specifications: ●Inner diameter (mm): 75 ●Outer diameter (mm): 102 ●Length (mm): 40.5 ●Maximum allowable torque (N・m): 4030 ●Two-face width dimension (mm): 22 ●Operating temperature range (℃): -30℃ to +200℃ ●Transmission torque (N・m): 4030 ●Thrust load (kN): 101 ●Thrust load (N・m): 101
