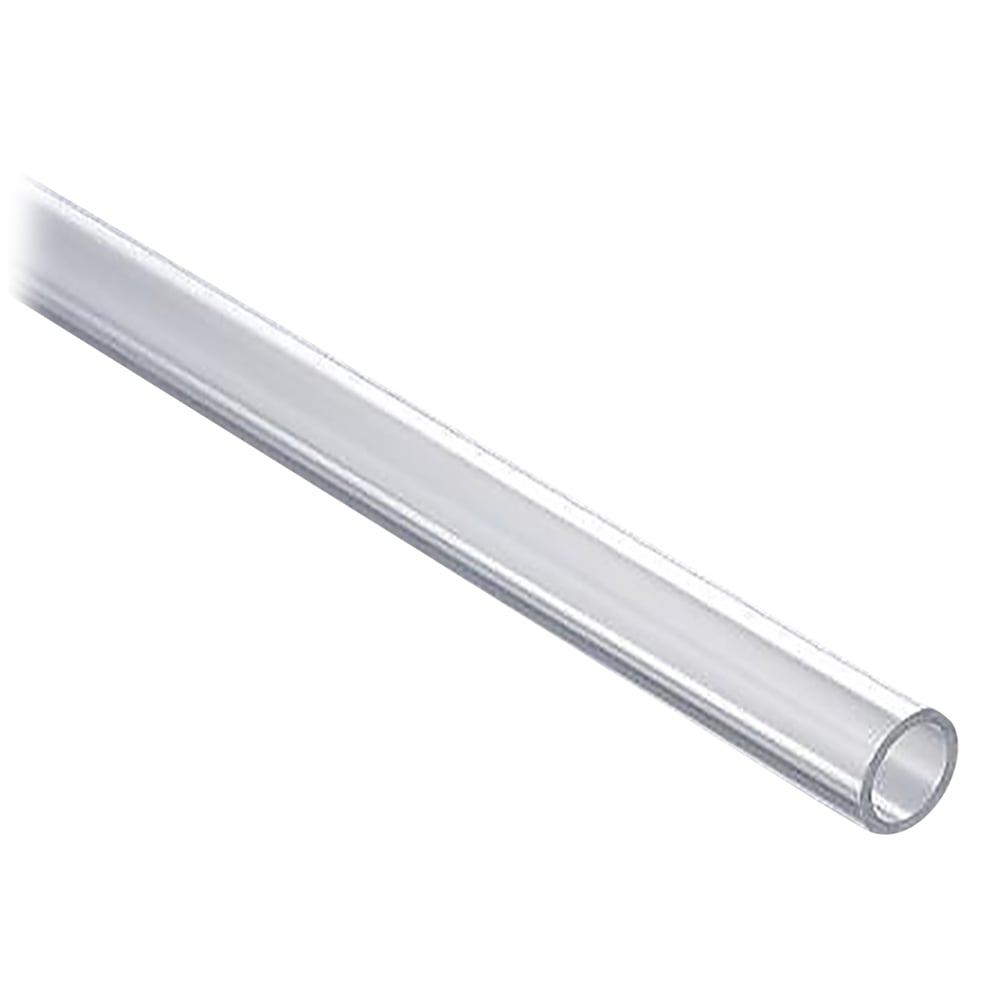

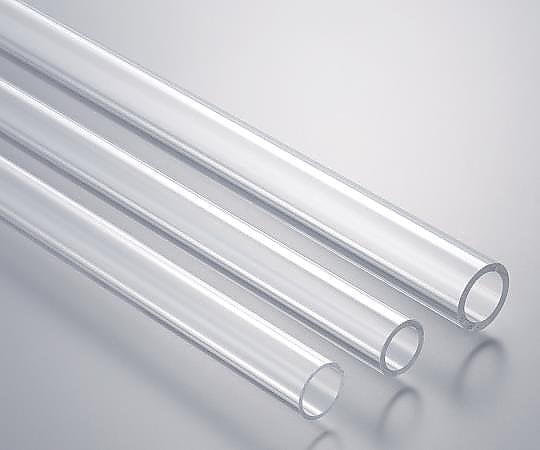

Standard quartz tube (length 1000mm) φ9.5 #9 1 piece

It has excellent heat and chemical resistance and is used in semiconductor manufacturing jigs and laboratory equipment. This is quartz glass made by melting natural quartz with an oxyhydrogen flame, and is characterized by its high purity and low air bubbles. Length: 1000mm Inner diameter (φmm): 9.5±0.5 Wall thickness (mm): 0.8±0.3 Material: Quartz glass (fused silica) End face: cut off *Cutting to specified dimensions in 1mm increments is possible starting from a single piece. (*Additional fees and prior consultation required.) Heat resistance: 1100℃ Normal operating temperature: 1000℃
