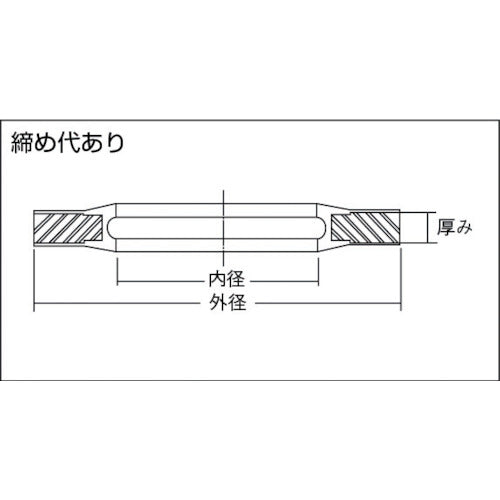

Catalog number: SWS 10-18 Features: ●Completely prevents leakage from fastening points and intrusion of dust and foreign matter. ●No need for groove processing or precision finishing of sealing surfaces. ●Excellent corrosion resistance and chemical resistance. ●Even if the screw is facing downwards after being assembled into the screw, it will not fall off due to the effect of the interference. ●Made of stainless steel, it is rust-resistant. Applications: ●Headed bolt seal. ●Flange seal. Specifications: ●Maximum hole diameter (mm): 10.5 ●Nominal diameter (mm): 10 ●Inner diameter (mm): 9.8 ●Outer diameter (mm): 18.3 ●Thickness (mm): 1.3 ●Operating temperature range: -25 to 100°C Materials/Finish: ●Packing: Synthetic rubber (NBR) ●Metal ring: Stainless steel (SUS304)
