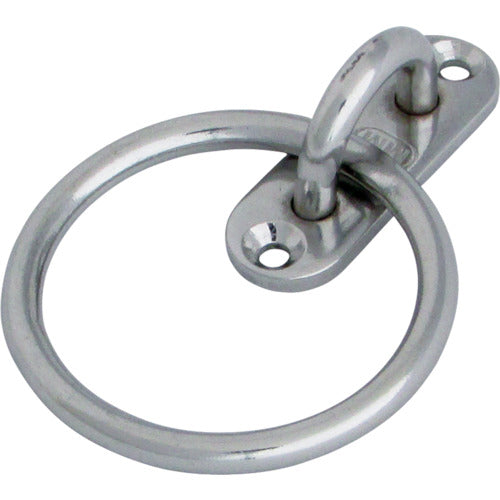

Mizumoto Eye Plate Stainless Steel Pad Eye Round Ring Round Ring Inner Diameter 30mm 12mm x 36mm B-526 1 pc

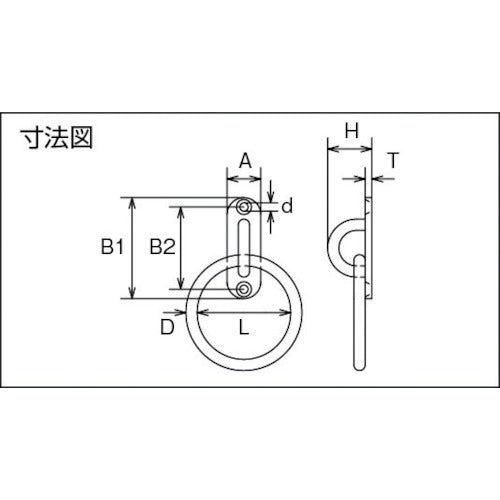

Catalog number: B-526 Features: ●Can be installed even on surfaces with a narrow installation width. ●Please use flat head screws. ●Equipped with a round ring, making it easy to pass thick ropes through. Applications: ●Install on walls, floors, pillars, etc. as a terminal fitting for chains, wires, and ropes. Specifications: ●Working load (kN): 0.07 ●A (mm): 12 ●D (mm): 4 ●L (mm): 30 ●B1 (mm): 36 ●H (mm): 15.8 ●B2 (mm): 28.5 ●d (mm): 3.2 ●T (mm): 1.8 Material/Finish: ●Stainless steel (SUS304) ●Finish: Electrolytic polishing finish
