Mizumoto Eye Plate Stainless Steel Pad Eye 12mm x 36mm A-524 1 piece

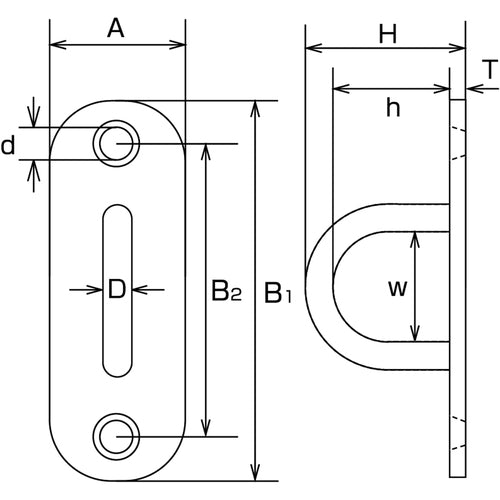

Catalog number: A-524 Features: ● Made of stainless steel, it is rust-resistant and highly durable. ● Can be installed even on surfaces with a narrow installation width. Applications: ● Install on walls, floors, pillars, etc., and use as terminal fittings for chains, wires, ropes, etc. Specifications: ● A (mm): 12 ● D (mm): 4 ● B1 (mm): 36 ● H (mm): 15.8 ● W (mm): 12.5 ● B2 (mm): 28.5 ● d (mm): 3.2 ● h (mm): 10 ● T (mm): 1.8 ● Reference load (kN): 0.07 Material/Finish: ● Stainless steel (SUS304) ● Finish: Electrolytic polishing finish
