Mizumoto Eye Plate Stainless Steel Pad Eye 15mm x 45mm B-2234 1 pc

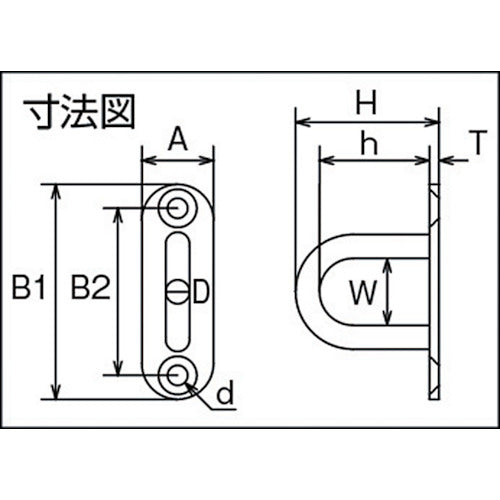

Catalog number: B-2234 Features: ●Can be installed even on surfaces with a narrow installation width. ●Please use flat head screws. ●The large H dimension makes it easy to hang things. Applications: ●Install on walls, floors, pillars, etc. as a terminal fitting for chains, wires, ropes, etc. Specifications: ●Working load (kN): 0.15 ●A (mm): 15 ●D (mm): 5 ●B1 (mm): 45 ●H (mm): 30 ●W (mm): 14 ●B2 (mm): 35 ●d (mm): 4.2 ●h (mm): 23 ●T (mm): 2 Material/Finish: ●Stainless steel (SUS304) ●Finish: Electrolytic polishing finish
