Mizumoto Grating Clip Stainless Steel GCG Type Pitch 31mm GCG-1 1 Piece

Mizumoto Grating Clip Stainless Steel GCG Type Pitch 31mm GCG-1 1 Piece

JAN：4982970046409 　
Grating Grating Clip Mizumoto Handling Fittings Office and residential supplies Storage and exterior supplies
¥1,133
¥1,133
Sale Sold out
Shipping calculated at checkout.

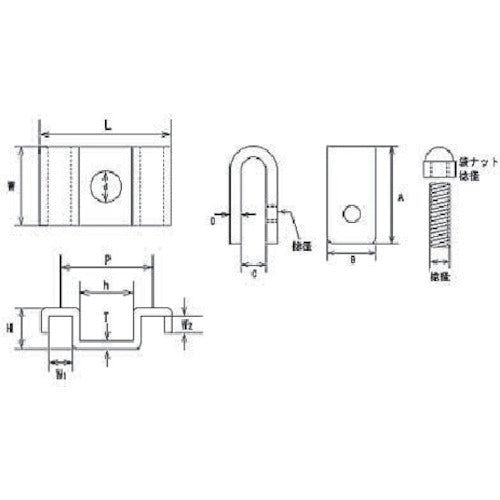

Catalog number: GCG-1 Features: ●Fixed with hexagonal socket set screws. Applications: ●By fixing the concrete groove and grating, it prevents accidents caused by jumping up due to impact and suppresses theft of the grating. Specifications: ●W(mm): 25 ●Screw diameter: M8 ●A(mm): 39 ●B(mm): 19 ●C(mm): 10.5 ●D(mm): 4.5 ●L(mm): 42 ●P(mm): 31 ●T(mm): 2 ●W2(mm): 6 ●h(mm): 20 ●d(mm): 10 ●W1(mm): 7 ●H(mm): 13.5 Material/Finish: ●Material: Stainless steel (SUS304) ●Finish: Barrel polishing finish
