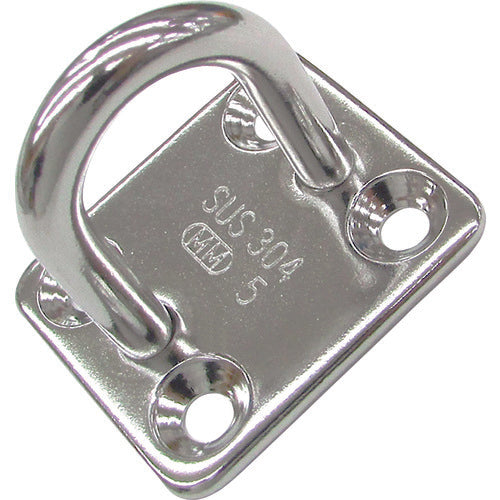

Mizumoto Stainless Steel Eye Plate 34mm x 40mm x 48mm IP-6H 1 piece

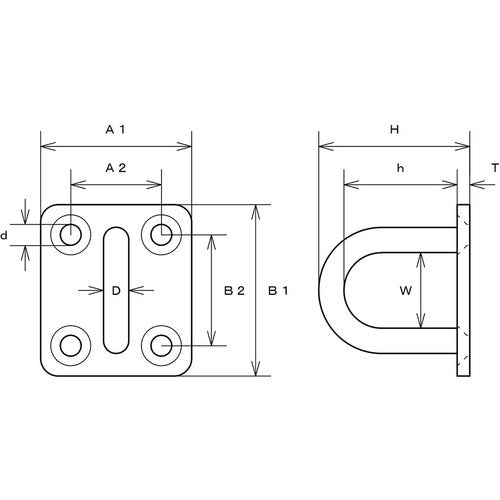

Catalog number: IP-6H Features: ●The large H dimension makes it easy to hang things. ●Please use flat head screws. Applications: ●Install on walls, floors, pillars, etc., and use as terminal fittings for chains, wires, ropes, etc. Specifications: ●Working load (kN): 0.20 ●A1 (mm): 34 ●D (mm): 6 ●A2 (mm): 20 ●B1 (mm): 40 ●H (mm): 48 ●W (mm): 19 ●B2 (mm): 25 ●d (mm): 5.2 ●h (mm): 39.5 ●T (mm): 2.5 Material/Finish: ●Stainless steel (SUS304)
