(株)水本機械製作所

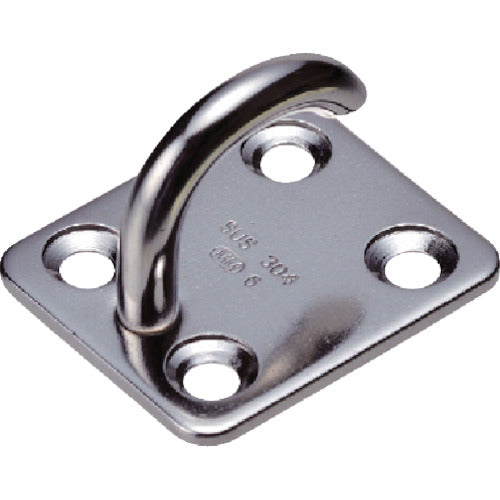

Mizumoto Stainless Steel Open Eye Plate, Working Load: 0.2kN, OIP-8, 1 piece
Mizumoto Stainless Steel Open Eye Plate, Working Load: 0.2kN, OIP-8, 1 piece
Regular price
¥1,236
Regular price
Sale price
¥1,236
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

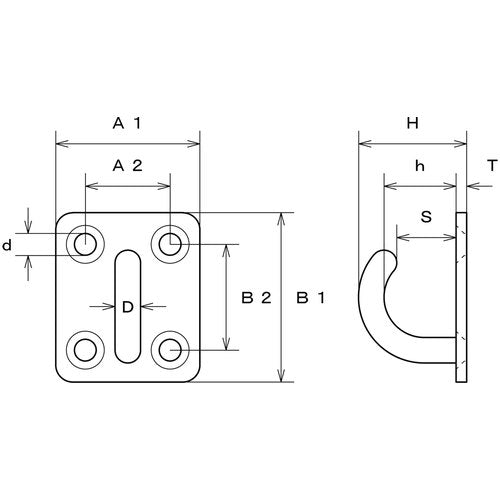

Catalog number: OIP-8 Features: ●Type that is fixed in four places. Uses: ●For mounting on posts, walls, etc. Specifications: ●Working load (kN): 0.20 ●A1 (mm): 39 ●D (mm): 8 ●A2 (mm): 25 ●B1 (mm): 50 ●H (mm): 32 ●B2 (mm): 35 ●d (mm): 5.2 ●h (mm): 21 ●S (mm): 16 ●T (mm): 3 Material/Finish: ●Stainless steel (SUS304)
