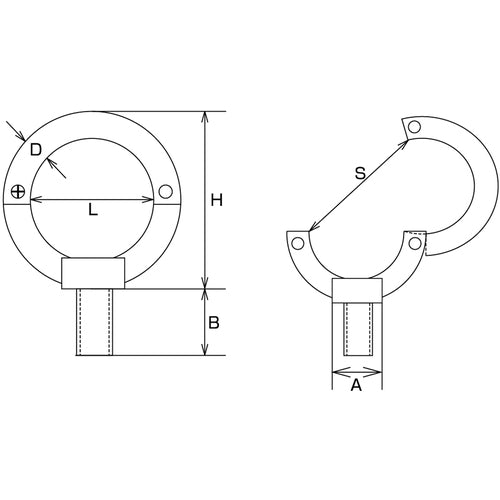

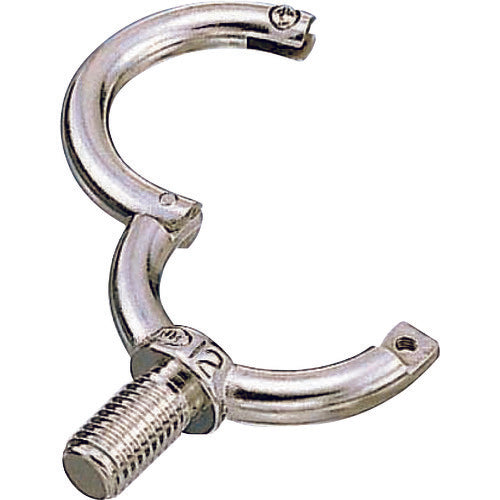

Catalog number: B-1005 Features: ●It can be easily opened with a screwdriver, so it is easy to pass pipes through after bolt installation. Applications: ●For general loading and unloading, such as lifting machinery and equipment. Specifications: ●Working load (kN): 0.98 ●Thread diameter: M12 ●D (mm): 9 ●B (mm): 22 ●L (mm): 40 ●H (mm): 58 ●A (mm): 19 ●S (mm): 60 Material/Finish: ●Stainless steel (SUS304)
