(株)水本機械製作所
Mizumoto Stainless Steel Pad Eye (with Small Screw) 4mm B-3065 1 pc
Mizumoto Stainless Steel Pad Eye (with Small Screw) 4mm B-3065 1 pc
Regular price
¥509
Regular price
Sale price
¥509
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

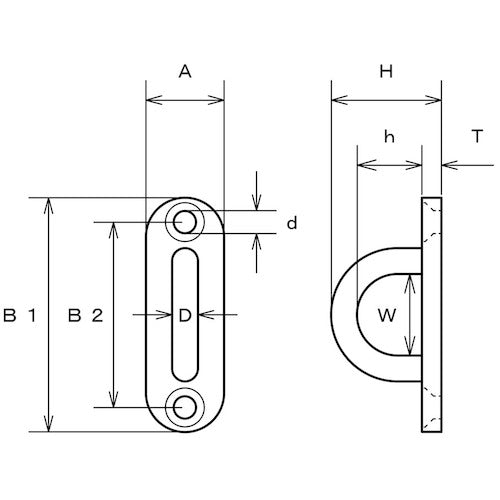

Catalog number: B-3065 Features: ●Can be installed even on surfaces with narrow installation widths. Applications: ●Install on walls, floors, pillars, etc., and use as terminal fittings for chains, wires, ropes, etc. Specifications: ●Working load (kN): 0.10 ●A (mm): 12 ●D (mm): 4 ●B1 (mm): 36 ●H (mm): 17 ●W (mm): 12.5 ●B2 (mm): 28.5 ●d (mm): 3.5 ●h (mm): 10 ●T (mm): 3 Material/Finish: ●Stainless steel (SUS304) Set contents/Accessories: ●2 flat head screws
