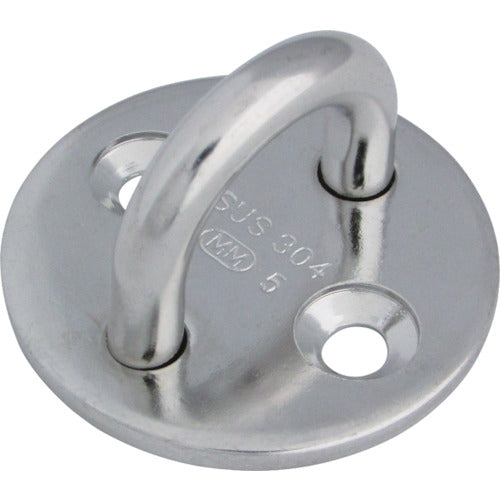

Mizumoto Stainless Steel Round Eye φ33mm B-051 1 pc

Mizumoto Stainless Steel Round Eye φ33mm B-051 1 pc

JAN：4982970400423 　
Architectural hardware Eye Plate Hardware and building materials Loading fittings Mizumoto Handling Fittings
¥654
¥654
Sale Sold out
Shipping calculated at checkout.

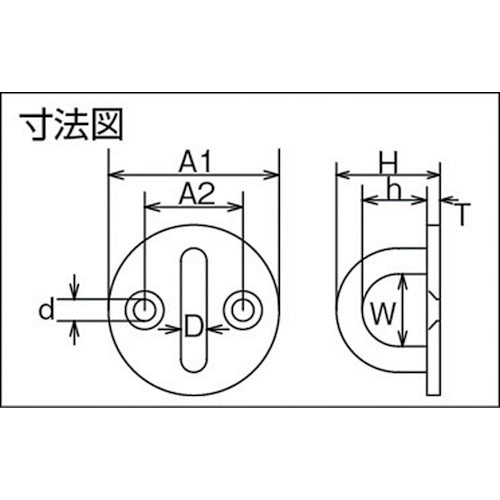

Catalog number: B-051 Features: ●Type that fastens in two places. ●The plate portion is circular. Applications: ●Install on walls, floors, pillars, etc. as a terminal fitting for chains, wires, and ropes. Specifications: ●Working load (kN): 0.15 ●A1 (mm): 33 ●D (mm): 5 ●A2 (mm): 19 ●H (mm): 20.0 ●W (mm): 14 ●d (mm): 4.2 ●h (mm): 12.5 ●T (mm): 2.5 Material/Finish: ●Stainless steel (SUS304) ●Finish: Electrolytic polishing finish
