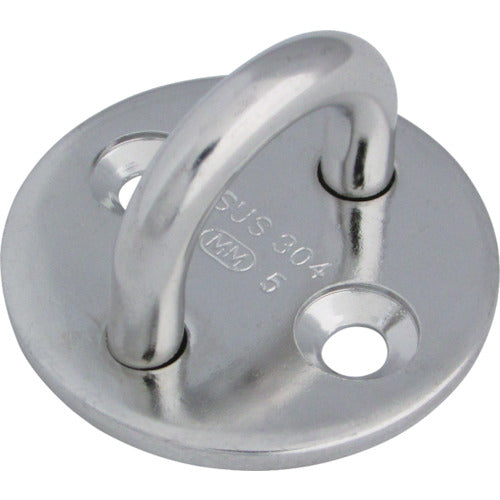

Mizumoto Stainless Steel Round Eye φ40mm B-052 1 pc

Mizumoto Stainless Steel Round Eye φ40mm B-052 1 pc

JAN：4982970400430 　
Architectural hardware Eye Plate Hardware and building materials Loading fittings Mizumoto Handling Fittings
¥792
¥792
Sale Sold out
Shipping calculated at checkout.

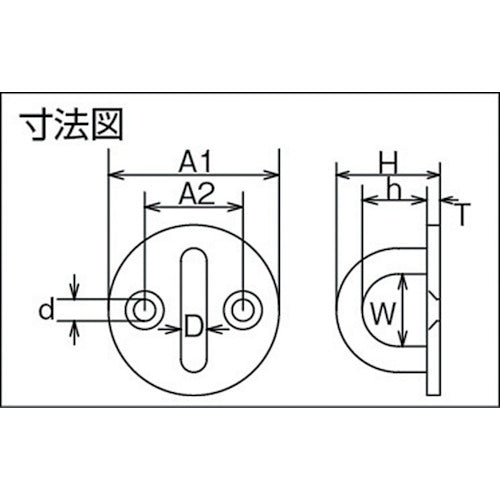

Catalog number: B-052 Features: ●Type that fastens in two places. ●The plate portion is circular. Applications: ●Install on walls, floors, pillars, etc. as a terminal fitting for chains, wires, and ropes. Specifications: ●Working load (kN): 0.20 ●A1 (mm): 40 ●D (mm): 6 ●A2 (mm): 23 ●H (mm): 25.5 ●W (mm): 19 ●d (mm): 5.2 ●h (mm): 17.0 ●T (mm): 2.5 Material/Finish: ●Stainless steel (SUS304) ●Finish: Electrolytic polishing finish
