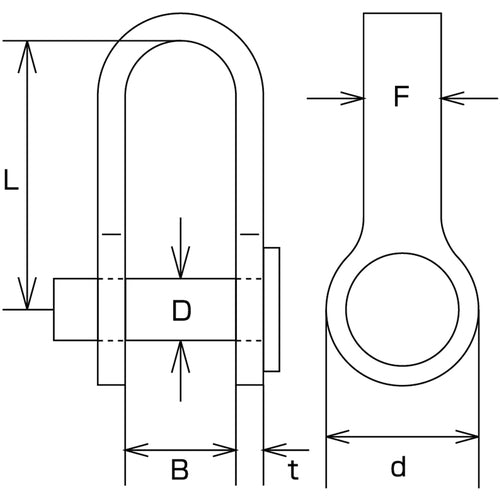

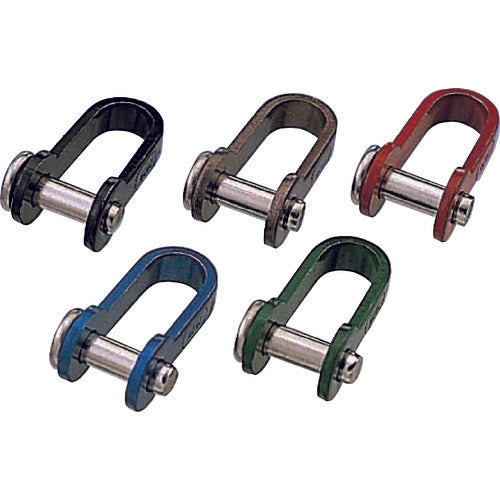

Catalog number: B-1229 Features: ● The pin will not come off if you hit it with a hammer. ● Colorful. Applications: ● For connecting chains, wires, ropes, etc., and for joining metal fittings at terminals. ● Particularly in places where there is a possibility of the pin coming loose with a normal shackle due to a lot of vibration. Specifications: ● Working load (kN): 0.49 ● B (mm): 9 ● D (mm): 5 ● F (mm): 6 ● L (mm): 22 ● d (mm): 12 ● t (mm): 2 ● Color: Black Material/Finish: ● Stainless steel (SUS304)
