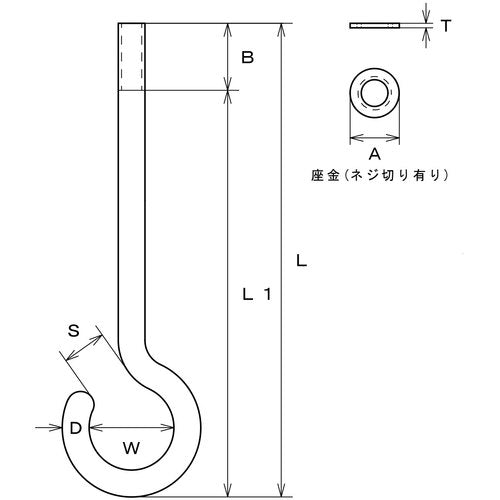

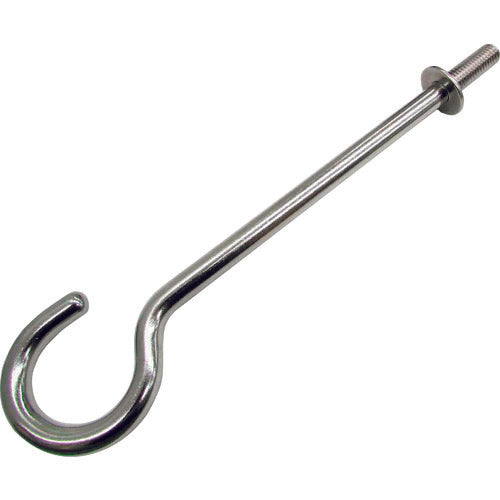

Catalog number: LQH-10 Features: ● Made of stainless steel, it has excellent corrosion resistance. Applications: ● Installed on floors and pillars, etc., as the end fittings for chains, wires, and ropes. Specifications: ● Working load (kN): 0.74 ● Thread diameter: M-10 ● D (mm): 9 ● L (mm): 217 ● L1 (mm): 187 ● A (mm): 22 ● B (mm): 30 ● S (mm): 17 ● W (mm): 32 ● T (mm): 2 Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● Threaded washer
