Mizumoto Stainless Steel Low Ice Strap, No Counterbore Type, Wire Diameter 8mm, Pitch 57mm, B-1252, 1 pc
Mizumoto Stainless Steel Low Ice Strap, No Counterbore Type, Wire Diameter 8mm, Pitch 57mm, B-1252, 1 pc
Regular price
¥740
Regular price
Sale price
¥740
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

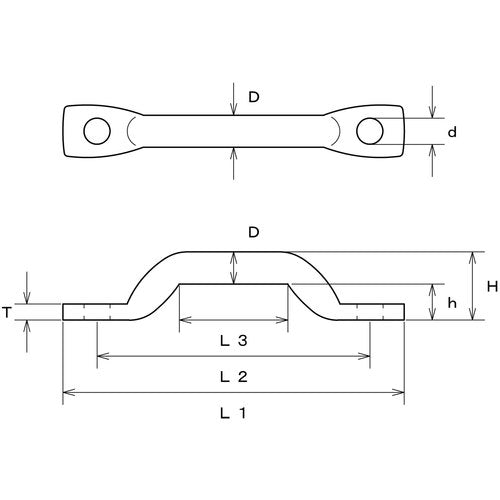

Catalog number: B-1252 Features: ●Can be installed even on surfaces with a narrow installation width. ●Convenient for installation on floor surfaces and for passing belts through. Applications: ●For installation on pillars and walls. Specifications: ●Working load (kN): 0.29 ●D (mm): 8 ●L1 (mm): 73 ●L2 (mm): 57 ●H (mm): 16 ●L3 (mm): 32 ●d (mm): 5.2 ●h (mm): 8 ●T (mm): 3.2 Material/Finish: ●Stainless steel (SUS304) ●Finish: Barrel polishing finish
