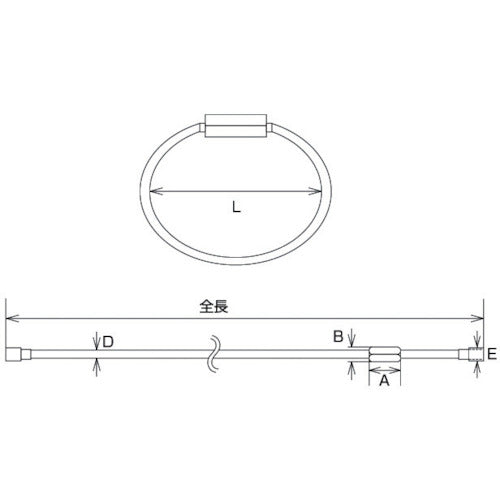

Catalog number: CW-4080 Features: ● Align both ends and tighten the screws to close. Applications: ● As a connecting fitting for chains, wires, ropes, etc., and as a joint for terminal fittings. Specifications: ● Total length (mm): 270 ● D (mm): 4 ● B (mm): 9 ● A (mm): 25 ● L (mm): 80 ● E (mm): 7 ● Working load (kN): 0.98 Material/Finish: ● Material: Stainless steel (SUS304) ● Finish: Barrel polishing finish
