Mizumoto Stainless Steel Wire Clip SUS316 Rope Diameter 5mm B-2433 1 pc

Mizumoto Stainless Steel Wire Clip SUS316 Rope Diameter 5mm B-2433 1 pc

JAN：4982970424337 　
Architectural hardware Hardware and building materials Loading fittings Mizumoto Handling Fittings Wire Clip
¥1,038
¥1,038
Sale Sold out
Shipping calculated at checkout.

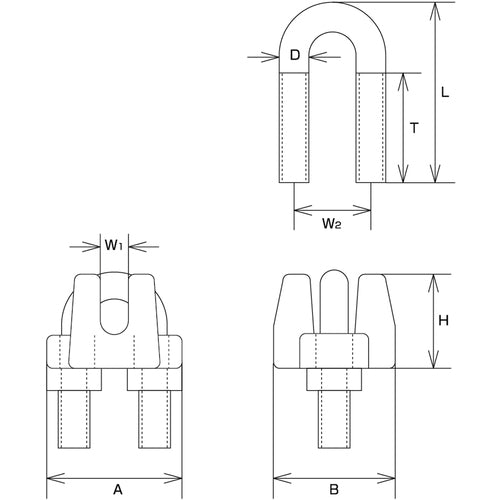

Catalog number: B-2433 Features: ●Wire can be processed on-site. ●Made of stainless steel, it is rust-resistant and has excellent durability. Applications: ●For processing wire rope terminals. Specifications: ●Applicable rope diameter (mm): 5 ●A (mm): 22 ●B (mm): 20 ●D (mm): 4.4 ●L (mm): 28 ●Thread diameter: M5 ●W2 (mm): 12 ●T (mm): 15 ●W1 (mm): 5.5 ●H (mm): 15 Material/Finish: ●Stainless steel (SUS316)
