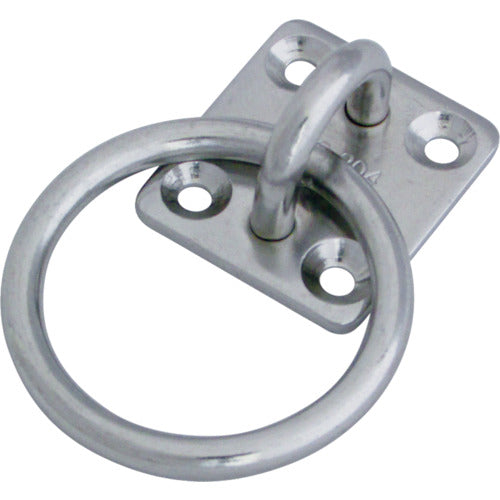

Mizumoto Stainless Steel Round Ring Plate 54mm x 75mm Round Ring Inner Diameter 60mm B-773 1 pc

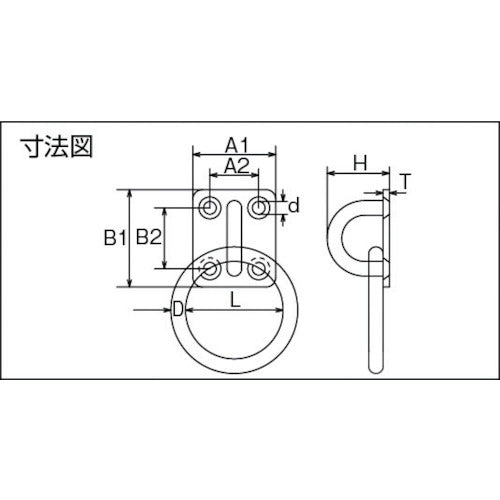

Catalog number: B-773 Features: ● Comes with a round ring, making it easy to pass thick ropes through. Applications: ● Install on walls, floors, pillars, etc. as a terminal fitting for chains, wires, and ropes. Specifications: ● Working load (kN): 1.18 ● A1 (mm): 54 ● D (mm): 12 ● A2 (mm): 35 ● L (mm): 60 ● B1 (mm): 75 ● H (mm): 47.8 ● B2 (mm): 56 ● d (mm): 5.8 ● T (mm): 4.8 Material/Finish: ● Stainless steel (SUS304) ● Finish: Electrolytic polishing finish
