Mizumoto Stainless Steel Suspension Hook (Screw) (with Cut Anchor) Wire Diameter 12mm (1 pc) B-2726 1 pc
Mizumoto Stainless Steel Suspension Hook (Screw) (with Cut Anchor) Wire Diameter 12mm (1 pc) B-2726 1 pc
Regular price
¥2,868
Regular price
Sale price
¥2,868
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

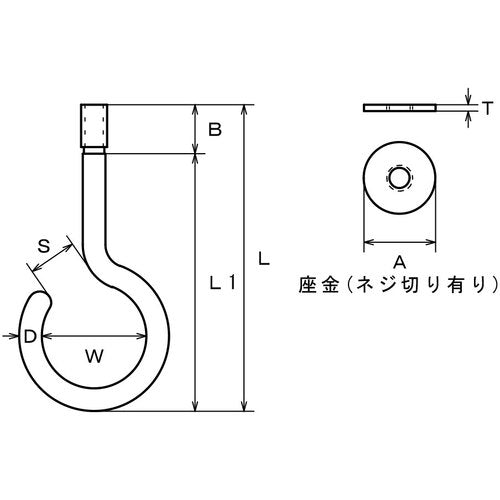

Catalog number: B-2726 Features: ●Uses stainless steel with excellent corrosion resistance. ●Comes with a screw washer for easy installation. Applications: ●Install on walls, floors, pillars, etc. as a terminal fitting for chains, wires, and ropes. Specifications: ●Working load (kN): 1.96 ●Thread diameter: W1/2 ●Drill diameter (mm): 18 ●A (mm): 22 ●B (mm): 22 ●D (mm): 12 ●L (mm): 136 ●L1 (mm): 114 ●W (mm): 37 ●S (mm): 20 ●T (mm): 2 Material/Finish: ●Stainless steel (SUS304) ●Cut anchor: Iron Set contents/Accessories: ●Cut anchor included ●Cut anchor included
