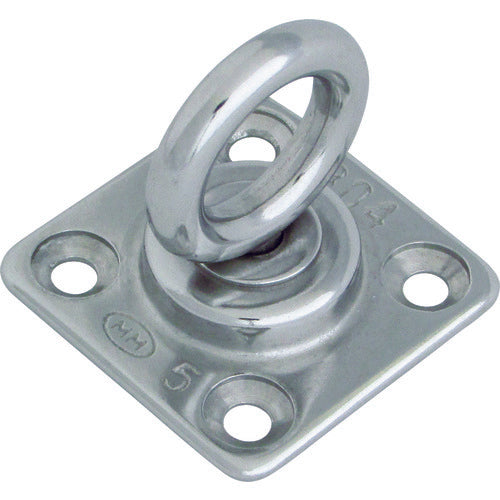

Mizumoto Stainless Steel Rotating Eye Plate 35mm x 35mm B-078 1 piece

Mizumoto Stainless Steel Rotating Eye Plate 35mm x 35mm B-078 1 piece

JAN：4982970403646 　
Architectural hardware Eye Plate Hardware and building materials Loading fittings Mizumoto Handling Fittings
¥2,258
¥2,258
Sale Sold out
Shipping calculated at checkout.

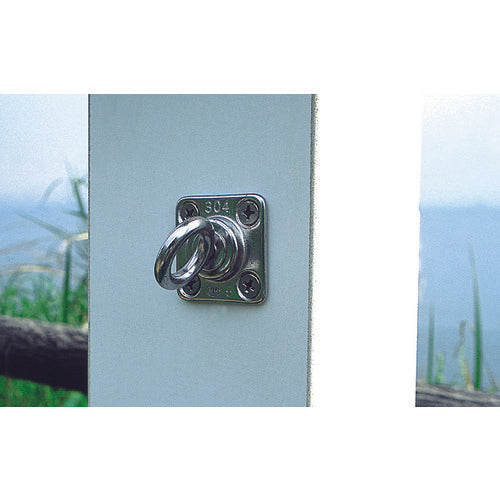

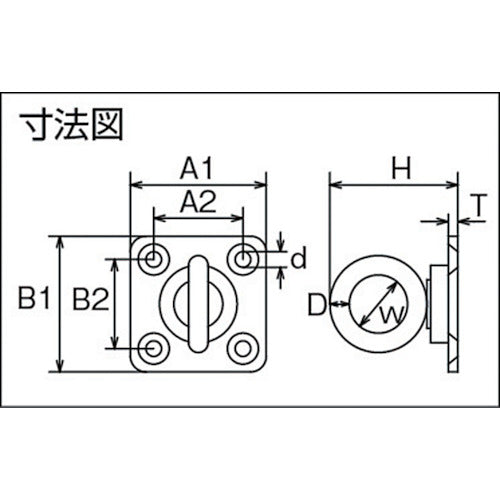

Catalogue number: B-078 Features: ●The eye (ring) part rotates to prevent the connected chain from twisting. ●Please use flat head screws. Applications: ●Install on walls, floors, pillars, etc. as a terminal fitting for chains, wires, and ropes. Specifications: ●Working load (kN): 0.15 ●A1 (mm): 35 ●D (mm): 5 ●A2 (mm): 23 ●B1 (mm): 35 ●H (mm): 33 ●W (mm): 15 ●B2 (mm): 23 ●d (mm): 4 ●T (mm): 2.5 Material/Finish: ●Stainless steel (SUS304) ●Finish: Barrel polishing finish
