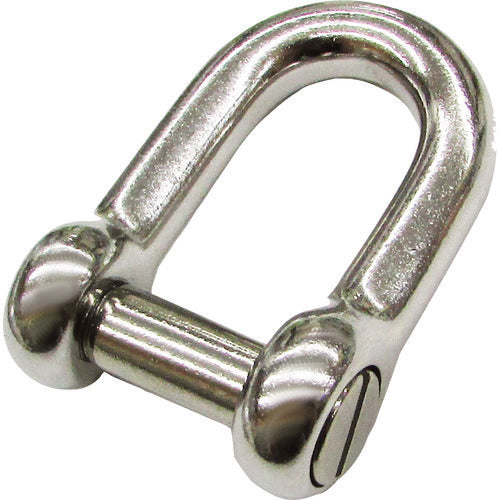

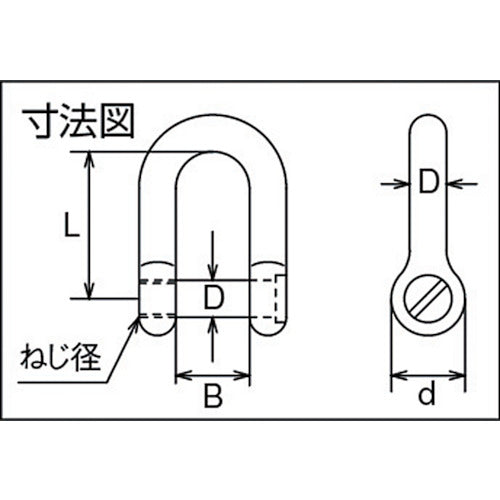

Catalog number: B-2252 Features: ● The protruding pin (the part that grips) of the screw shackle has been removed, so ropes and other items will not get caught. Applications: ● As a connecting metal fitting for chains, wires, ropes, etc., and as a joint for terminal metal fittings. Specifications: ● Working load (kN): 0.25 ● Screw diameter: M3 ● B (mm): 6 ● D (mm): 3 ● L (mm): 12 ● d (mm): 6 ● D1 (mm) ● D2 (mm) Material/Finish: ● Stainless steel (SUS304) ● Finish: Barrel polishing finish
