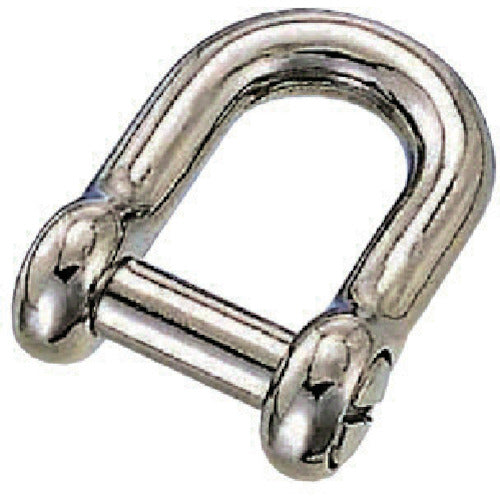

Catalog number: CS-8 Features: ● The protruding pin (the part that is gripped) of the screw shackle has been removed, so ropes etc. will not get caught. Applications: ● As a connecting metal fitting for chains, wires, ropes etc., and as a joint for terminal metal fittings. Specifications: ● B (mm): 16 ● D (mm): 8 ● L (mm): 32 ● d (mm): 17 ● Working load (kN): 2.45 ● Twist diameter: W-5/16 Material/Finish: ● Material: Stainless steel (SUS304) ● Finish: Barrel polishing finish
