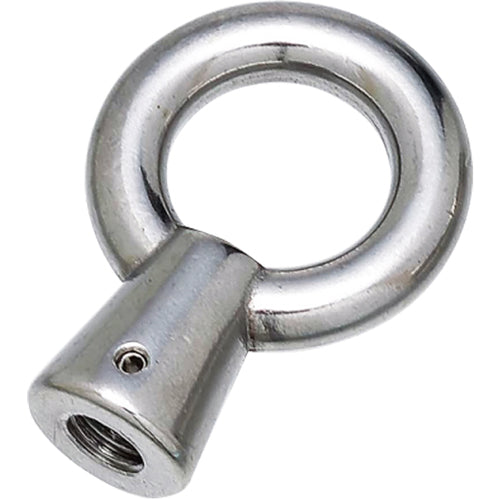

Mizumoto Stainless Steel Enclosure Eye Nut Metric Screw Thread Diameter M-12 INC-12M 1 pc
Mizumoto Stainless Steel Enclosure Eye Nut Metric Screw Thread Diameter M-12 INC-12M 1 pc
Regular price
¥2,018
Regular price
Sale price
¥2,018
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

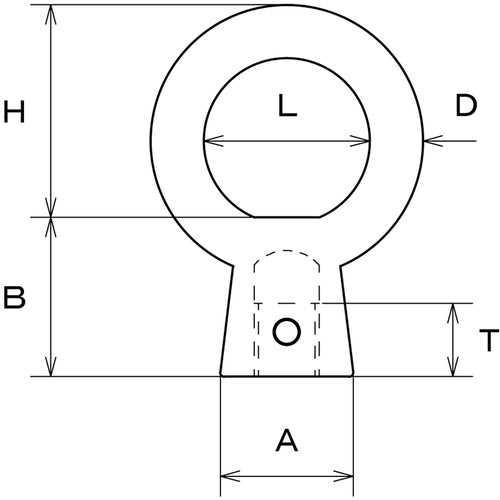

Catalog number: INC-12M Features: ●The head of the nut is ring-shaped, so it can be used with ropes, chains, wires, etc. ●Unlike normal eye nuts, the female thread does not penetrate, so the screw hole is not visible when installed, making it more decorative. Applications: ●For general loading and unloading, such as lifting machinery and equipment. Specifications: ●Working load (kN): 2.16 ●Thread diameter: M-12 ●A (mm): 24 ●D (mm): 10 ●B (mm): 29 ●L (mm): 30 ●H (mm): 39 ●T (mm): 14 ●Wrench size: 2.0 Material/Finish: ●Material: Stainless steel (SUS304) ●Finish: Barrel polishing finish Caution: ●Please use metal adhesive depending on the situation.
